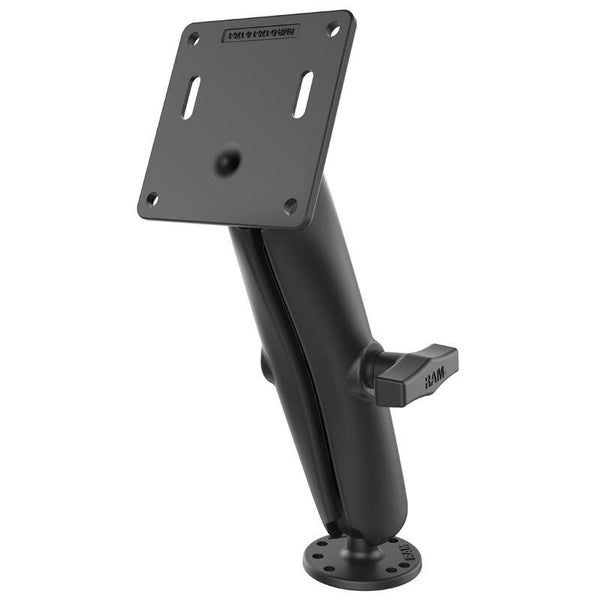

RAM-101U-D-2461 RAM(R) Double Ball Mount with 75x75mm VESA Plate

Features

• Square plate with offset ball features the 75x75mm VESA hole pattern for connection to a wide variety of devices
• Includes LONG C size RAM(R) double socket arm
• Round base plate is stable drill down base with 3 and 4 hole AMPs hole patterns
• RAM ball and socket technology allows for near-infinite adjustability
• Made of powder-coated, marine-grade aluminum for durability and reliability in the most demanding environments
• Backed by a lifetime warranty

The RAM-101U-D-2461 consists of a LONG length double socket arm, 2.5" diameter round base with the universal AMPS hole pattern and 92.1mm (3.625") square plate with the VESA hole pattern.

This 92mm square plate contains a 75mm X 75mm VESA hole pattern. The rubber ball is positioned 22.3mm (0.88") from the centre of one edge. Designed into the mount is a 1.5" diameter patented rubber ball and socket system with adjustment points at both socket ends of the arm. Rubber ball and socket technology allows for almost infinite adjustment and perfect viewing angles.

The round base consists of a 1.5" diameter rubber ball connected to a flat 63mm (2.5") diameter base. This mount has pre-drilled holes, including the universal AMPS hole pattern.

Overall Height: 276mm (10.85")

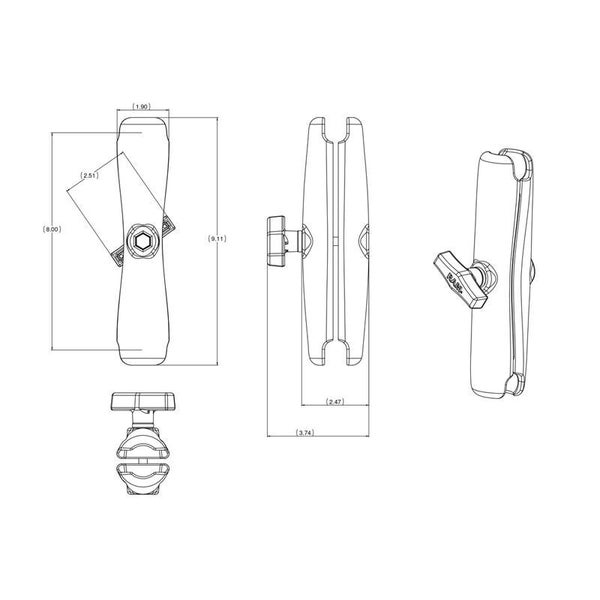

Arm Dimensions: Overall Length: 232mm (9.125" ) Socket-To-Socket Length: 203mm (8")

Hole Pattern 4-Hole AMPS: 1.181" x 1.496" (30mm x 38mm) 3-Hole AMPS 120-Degree 1.812" (46.0mm) See Drawing

Ball/Socket Size C Size (1.5")

Weight Capacity Standard Use: 1.814kg (4 lbs) Heavy-Duty Use: 1.36kg (3 lbs)

Materials Marine-grade aluminium

Weight 1.01kg (2.24 lbs.)

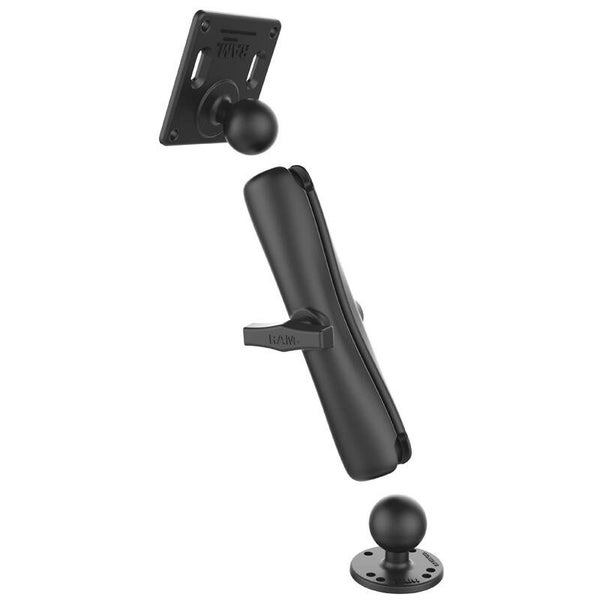

Components RAM-202U 2.5" / 63mm DIA. BASE 1.5" Ball RAM-2461U 90MM VESA PLATE STD BALL RAM-201U-D long length C series double socket arm
