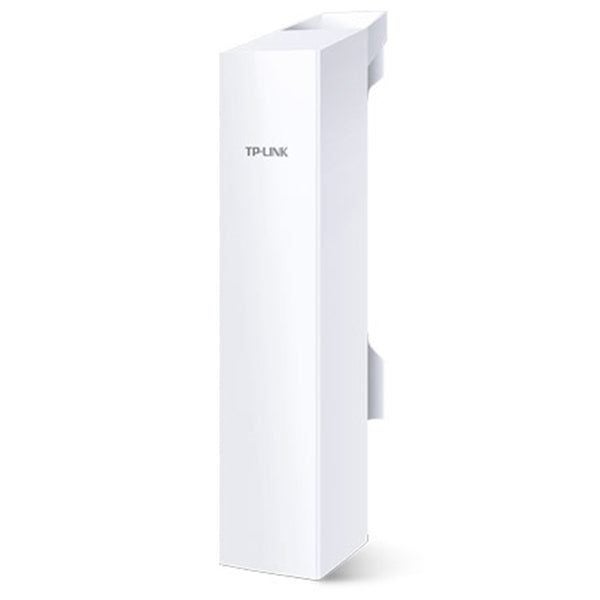

TP-LINK CPE220 2.4GHZ 300MBPS 12DBI OUTDOOR CPE

TP-LINK's 2.4GHz 300Mbps 12dBi Outdoor CPE, the CPE220 is dedicated to cost effective solutions for outdoor wireless networking applications. With its centralized management application, it is flexible and ideal for point-to-point, point-to-multipoint and outdoor Wi-Fi coverage applications. Professional performance, coupled with user-friendly design, makes CPE220 an ideal choice for both business and home users.

FEATURES

Built-in 12dBi 2x2 dual-polarized directional MIMO antenna

Adjustable transmission power from 0 to 30dBm/1000mw

System-level optimizations for more than 13km long range wireless transmission

TP-LINK Pharos MAXtream TDMA (Time-Division-Multiple-Access) technology improves product performance in throughput, capacity and latency performance, ideal for PTMP applications

Centralized Management System - Pharos Control

AP / Client / Bridge / Repeater / AP Router / AP Client Router (WISP) operation modes

Passive PoE Adapter supports up to 60 meter (200 feet) Power over Ethernet deployment and allows the device to be reset remotely

SPECIFICATIONS

HARDWARE FEATURES

Processor: Qualcomm Atheros 560MHz CPU, MIPS 74Kc

Memory: 64MB DDR2 RAM, 8MB Flash

Interface: 1 10/100Mbps Shielded Ethernet Port (LAN0,Passive PoE in), 1 10/100Mbps Shielded Ethernet Port (LAN1, Passive PoE Passthrough), 1 Grounding Terminal, 1 Reset Button

Power Supply: Passive Power over Ethernet via LAN0 (+4,5pins; -7,8pins)

Voltage range: 16-27VDC

Dimensions (W X D X H): 11x3.1x2.1 inch (276x79x60 mm)

Power Consumption: 10.8 Watts Max

Note: When deployed using Passive PoE, the power drawn from the power source will be higher by some amount depending on the length of the connecting cable.

Antenna Type: Built-in 12dBi 2x2 Dual-polarized Directional Antenna

Beam Width: 60o (H-Plane) / 30o (E-Plane)

Note: For more details,...
