ITEM SHIPPED FROM OVERSEAS TO NZ. DELIVERY 2-4 WEEKS. Most parcels arrive around 2-3 weeks however due to disruptions maybe delayed

Our listings have multi variant options. Select option you require from menu

Terms & Cond's: There is NO additional GST, duty, or Import Fee charged on goods valued $1000 or less, unless the goods are part of a large consignment Read your full obligations at: http://www.customs.govt.nz/personal/duty-and-gst

6months warranty. Repair/replacement items per our return policy in our store page

Photos for illustration purposes. AUCTION INCLUDES FOLLOWING ITEMS ONLY:

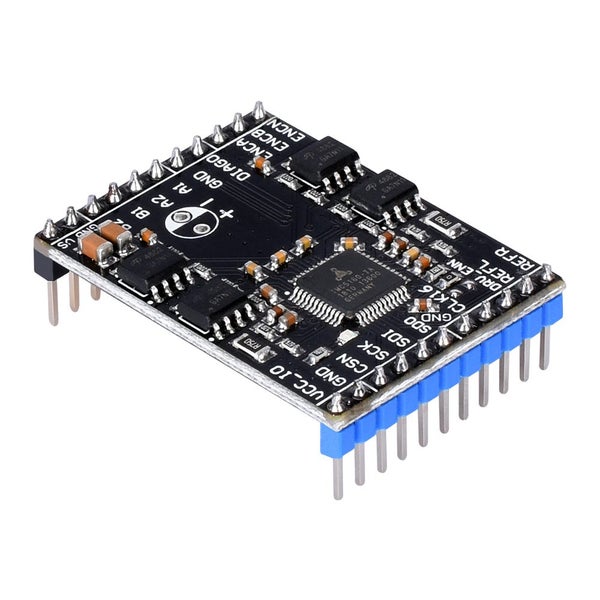

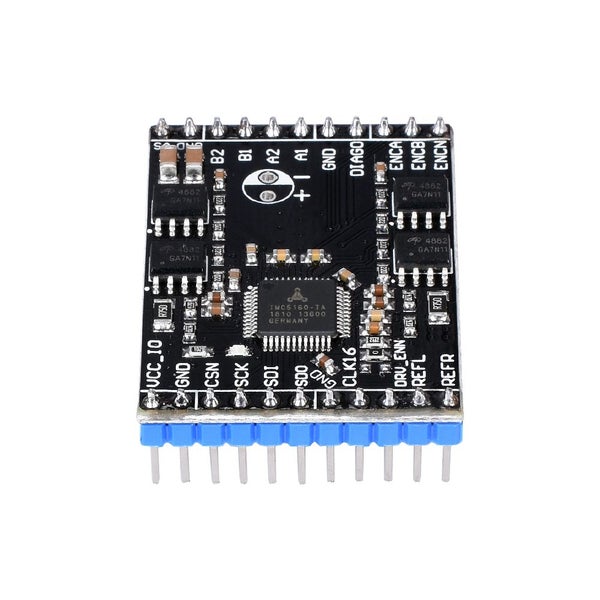

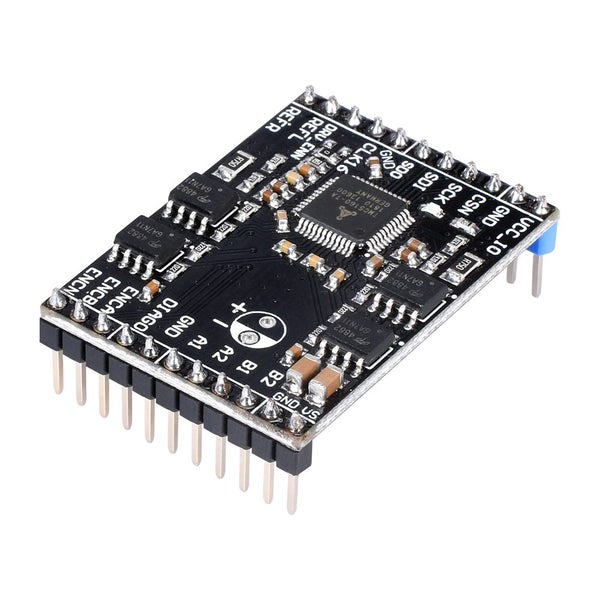

Package Included: 1 x TMC5160 Stepper Motor Driver

Features:

• Super quiet, anti-jitter.
• The TMC5160TA-V1.0 single-axis stepper motor control driver IC with serial communication interface can be externally expanded MOSFET.
• Each coil motor current up to 20A, the maximum voltage of 60V DC.
• Supply voltage 9-36V (limited by the MOSFETs)
• I phase,RMS up to 2.8A
• Configuration & Control via SPI
• S/D mode selectable via solder option
• Use with optional lowESR ELCO, ca. 150uF
• Board width 1.5“, board height 1.1“
• 2x11 pin 0.1“ header rows for pins/connectors
• All stepper motor logic runs inside TMC5160 - when driving NEMA17 to NEMA34 and larger motors, no software is required, just hardware is used. Superiority: 1.high-power stepping drive control IC

1. super quiet 3.Prevent vibration 4.TMC5160 control/drive intelligent IC, make stepping motor performance more powerful Parameters: Product Name: TMC5160TA-V1.0 Stepper Motor Driver Size: 38271MM Supply voltage: 9-36V(limited by the MOSFETs) Current: 2.8A Microsteps: Up to 256 Package Included: 1 x TMC5160 Stepper Motor Driver Mode Selection:
