Description
DYNAMIX AVROT12-500 19" 12U Rotary Rack - 45 and 90 Angle
DYNAMIX AVROT12-500 Description

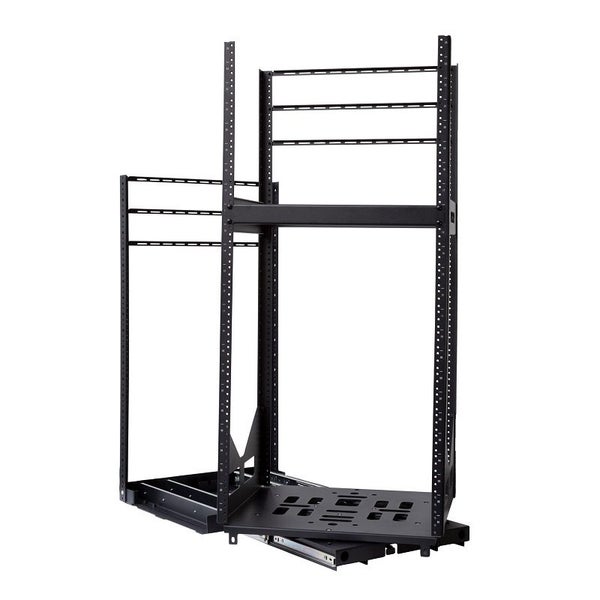

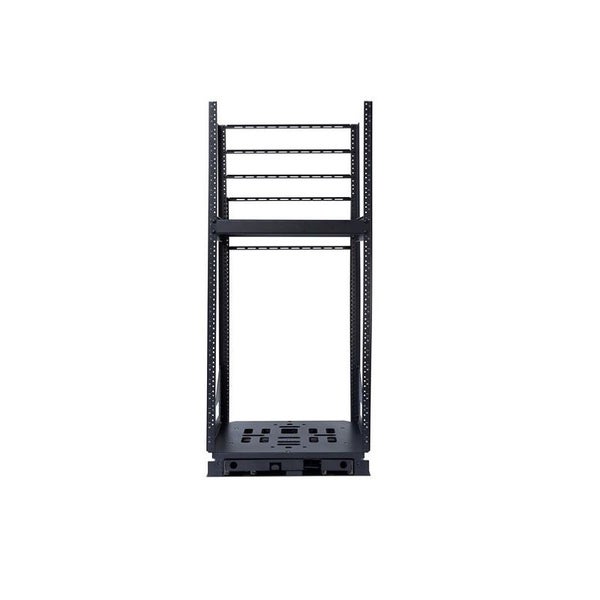

DYNAMIX AVROT12-500 - 19" Pull-out rotating equipment rack, ideal for in-cupboard and in-cavity installations. Rack is fixed to the floor then slides out on a integrated ball bearing base. Rotates to 0, 45 and 90 degrees into lockable position for convenient equipment servicing.
DYNAMIX 19'' 12U Rotary Rack. Rotation Angles of 45 & 90 Allow Easy Fitting of Equipment, Provides Easy Access for Maintenance & Servicing. 3mm steel adds Security & Stability. 503mm x 495.84mm x 12U
19" slide-out rotating equipment rack, ideal for in cupboard and in-cavity installations. The rack is fixed to the floor then slides out on integrated ball bearing base and can rotate 0, 60, 90 degrees in lockable positions for convenient equipment servicing.

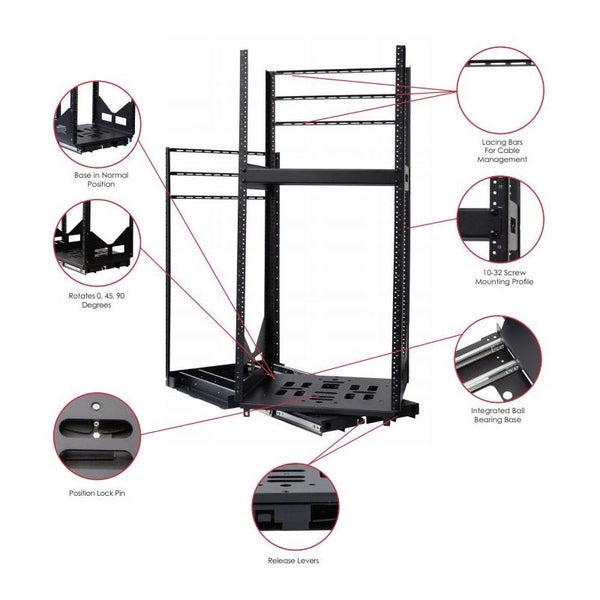

Features
- Pull-out rotate and lock in 0, 45 and 90 degree position
- Design to be bolted/fi xed to the fl oor
- Depth dimension at full extension 990mm
- Top lacing bars for cable management
- RU Marked in vertical rails
- Supplied in fl at pack with assembly instructions
- Max Loading: 60kg
- 19" Horizontal rack rail Mounting Type: 10-32 screws
- Material: SPCC quality cold rolled steel
- Colour: Matte black
- 2 Year warranty on cabinet. Subject to use within the static loading specifications and operation within normal environmental conditions
Additional Details
Product Manufactured by: Dynamix
Product Found in: Rack Cabinets
Cackle Part Number: CDA084
Manufacturer Part Number: AVROT12-500
