With a diverse range of inputs, including digital (optical or coaxial) and dynamic microphone inputs, and the ability to adjust each zone's volume independently, the PRO1323 is a quick and easy way of adding audio in up to four rooms. It also features a Loop-out for expanding to another unit, increasing the number of zones further!

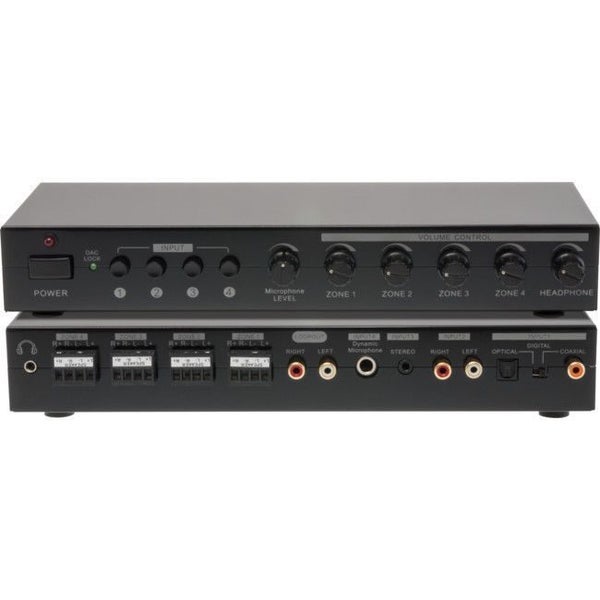

Features Four-in and five-out IN: 1x Digital (Optical / Coaxial selectable), 1x RCA Stereo, 1x 3.5mm Stereo, 1x Dynamic Microphone input OUT: 4 Speaker output + 1 Headphone output Built-In audio digital to analogue converter (DAC) Audio DAC Lock indicator Independent microphone level control Individual speaker volume control Provides line loop-out for expanding to more zones Large detachable terminal block (supplied) for quick andeasy installation Screw terminals handle wire sizes from 24 to 12 gauge

Specifications Speaker Audio Power Amplifier (x4): Amplifier Type: Stereo Class-D Output power: 15W(RMS) per channel (@ RL=4 ohm) THD+N: 0.06 % (@ RL=8 ohm, f = 1 kHz) Minimum Load Resistance: 4 ohm Includes Speaker Protection circuit.

Earphone Audio Power Amplifier: Output power:105mW(RMS) per channel THD+N: 0.05 % (@ RL=16 ohm, f = 1 kHz) Minimum Load Resistance: 16 ohm

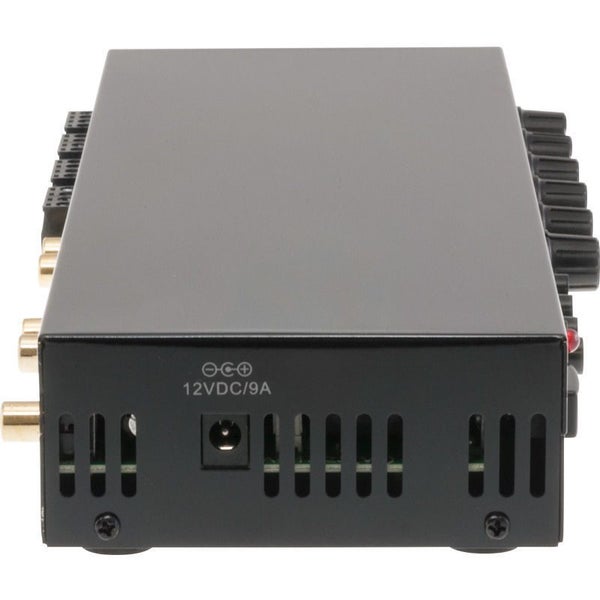

Power & Dimensions: Power Consumed: 9A Max Power Source: DC 12 Volts Size (LxWxH): 285mm x 128mm x 43mm Net Weight (Unit only): 0.8 Kg PRO1323
