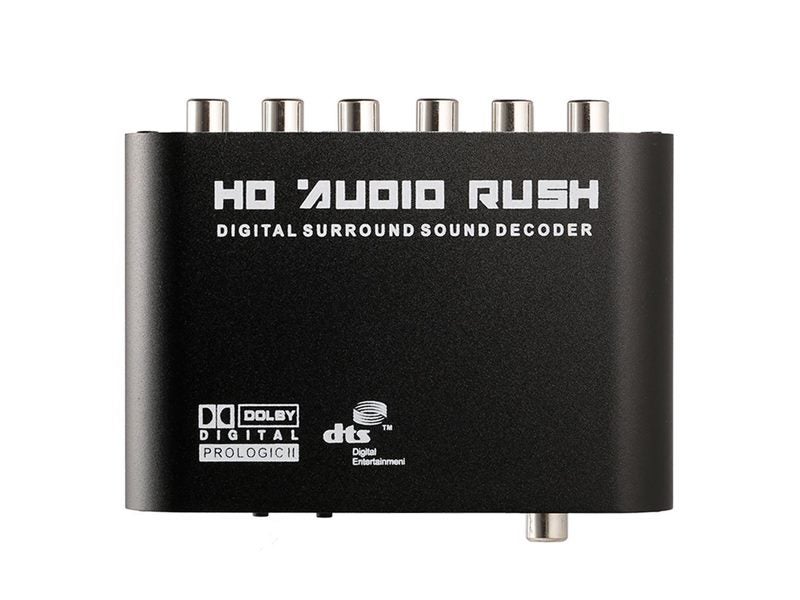

Features:

• Convert DTS/AC3 source digital audio to analog 5.1 audio or stereo audio output.
• Support Dolby Digital AC-3 Dolby Pro Logic, DTS, PCM and other digital audio format Source Decode
• Multi-channel audio input (SPDIF , Coaxial, Stereo) 2 x SPDIF input, 1 x Coaxial Input, 1 x Stereo.
• The analog stereo (L / R) signals after digital processing chip handle convert it to analog 5.1 channel output.

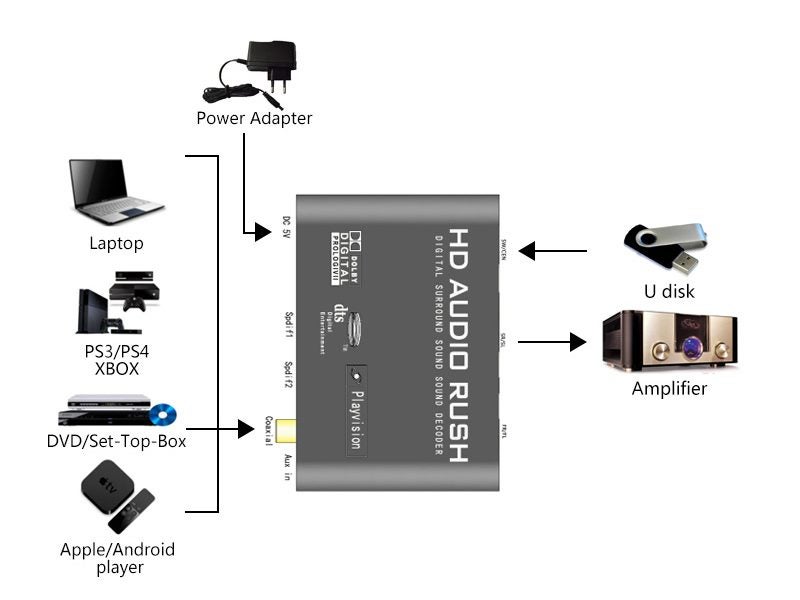

• Easy to connect many entertainment devices which with optical and coaxial digital signal and analog output signals such as set-top boxes, HD players, Blu-ray DVD, PS2, PS3, XBOX360 and so on.

Interface Schematic:

• DC/5V: Power Input
• S: Source short,switch Input channels(SPDIF,COX,AUX,While D1/D2/D3 corresponding LED lights)
• OPT1: SPDIF1 input interface
• OPT2: SPDIF2 input interface
• COX: Coaxial input
• AUX: Analog stereo input
• Power:Power indicator, power post-Always
• D1: When you press the S key,switch to the OPT1,D1 lights
• D2: When you press the S key,switch to the OPT2,D2 lights
• D3: When you press the S key,switch to the COX,D3 lights (When switch to only power light is on,the input is the AUX(stereo)channel)

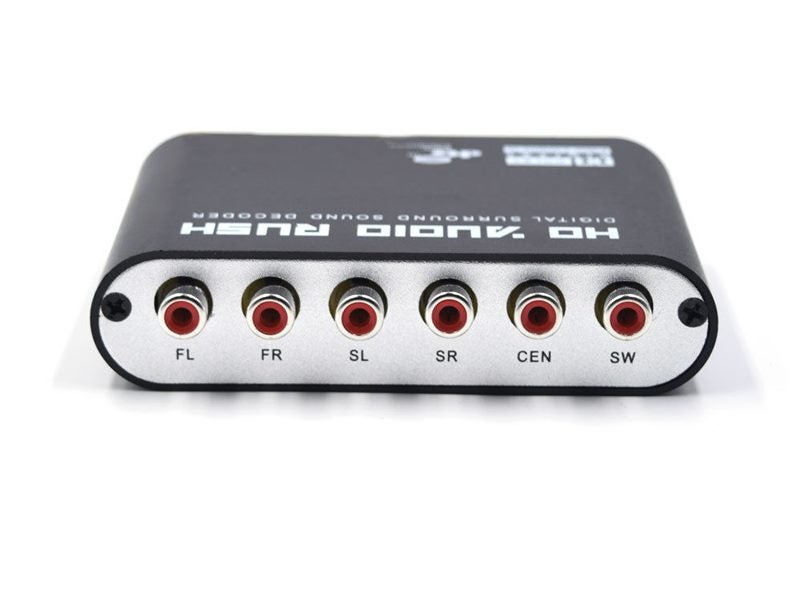

• CEN: Connect Amplifier CEN interface
• SW: Connect Amplifier SW interface
• FL/FR: Connect Amplifier FL/FR interface
• SL/SR: Connect Amplifier SL/SR interface

Specification:

Signal to Noise: 120db Degree of Separation: 85db Frequency Response: (20Hz~20 KHz) +/- 0.5db Max Output Volt: 2.2V Power Supply DC/5V 1A,(outlay 110V-240V broadband convert DC5V Power) Color:Black Product Dimension: 105 x 75 x 25mm Product Weight:147g Package Weight: 323 G / 11.39 Ounces Package Dimensions (LWH): 21315055 MM / 8.395.912.17 Inches

Package Included:

1 x Audio Decoder 1 x AC Adapter
