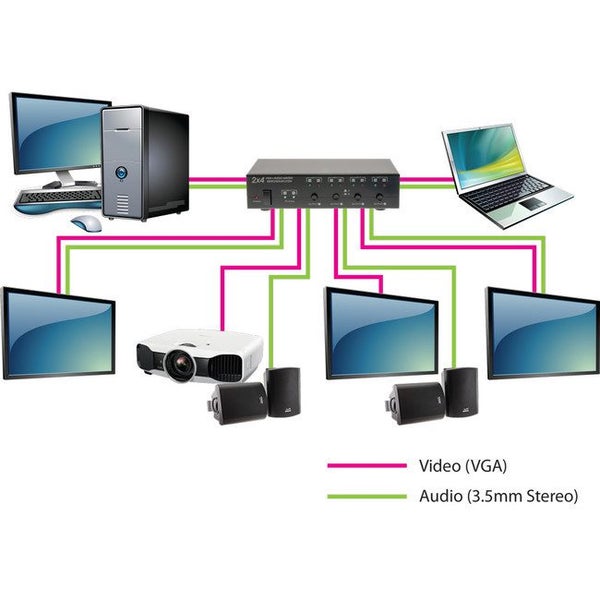

The PRO1338 VGA Matrix is perfect for larger installations where multiple displays or projectors are required. Each of the four outputs can independently displayeither of the two inputs. Perfect for classroom and demonstration rooms, conferences and houses of worship, and even restaurant or shop displays! Great for huge impact in large environments using up to 4x projectors or for small conference rooms where several small monitors can be used. Bars, clubs and function spaces can benefit from the flexible distribution of independent video and audio sourcesdepending on the size of the function - small functions mayonly require one projector while the remaining three outputscan display advertisements or sports throughout the rest of the venue!

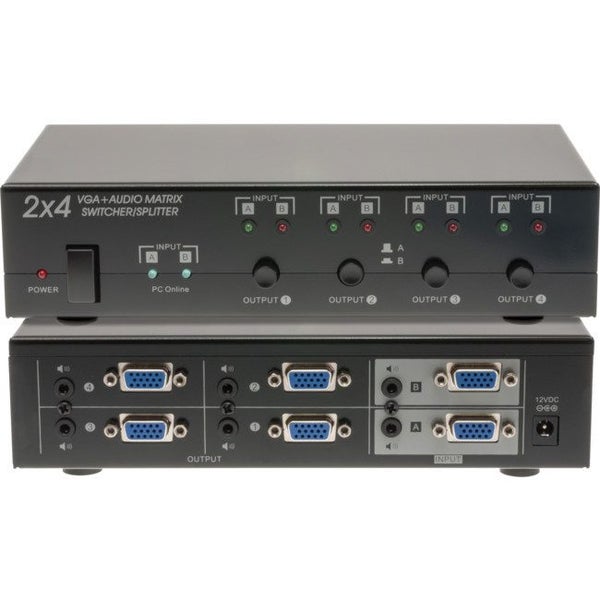

Features Allows two VGA source devices to provide video and audioto four displays / projectors. Front panel selection buttons. Each output can be set to input A or B Blue LED Indicator for PC Online Video and Audio can be cascaded

Specifications VGA: 300 MHz pixel frequency Extended Distance: 65 metres LED Indicator: Source Online: Blue Input A: Green Input B: Red Input/Output Connector: HD-15 Female.

Audio: Operation Frequency: 20Hz~20kHz Input Impedance: 47kohm Max. Audio Input: 4Vp-p Extended Distance: 100 metres Input/Output Connector: 3.5mm Mini-stereo Jack

Power: Power Source: 12 VDC / 1.2A PRO1338
