Package Included

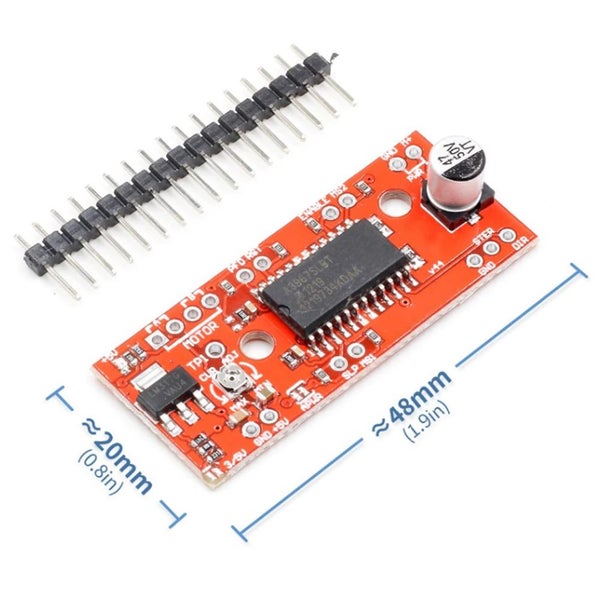

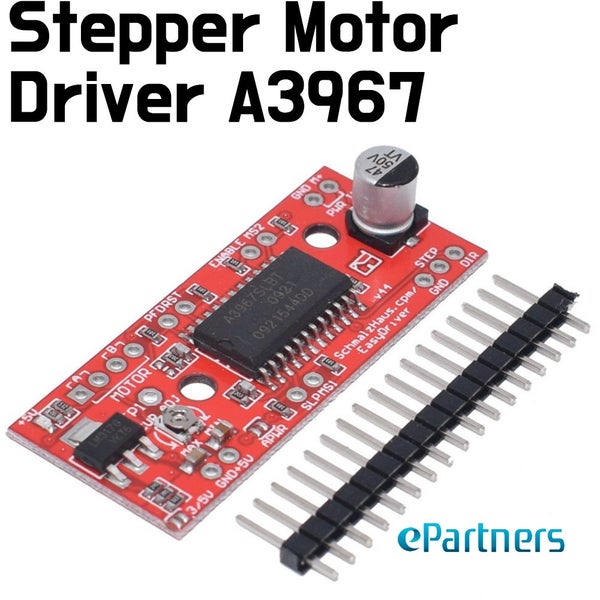

• 1 × A3967 Stepper Motor Driver

For more motor related products we sell, please refer to the following link.

• http://bit.ly/ePartners-motor

Description

• Supply voltage: 7V ~ 30V
• Stepper motor step angle is usually defined with parameters or a number of steps, the general motor revolution is divided into 200 steps, which is the step angle of 1.8 degrees, EasyDriver subdivision function with a step, this driver board subdivision 8 segments, that is, each step of the motor is subdivided into 8 small step, this can be more precise control, ie EasyDriver to 1600 steps to complete a full 360 degree rotation.

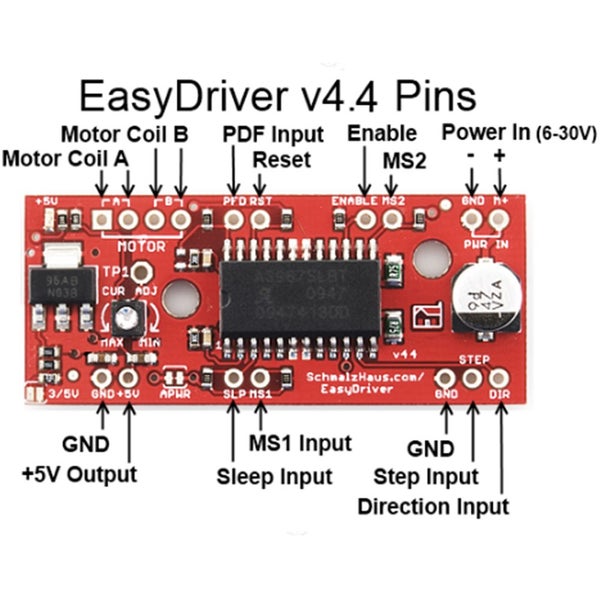

• The EasyDriver is a simple to use stepper motor driver, compatible with anything that can output a digital 0 to 5V pulse (or 0 to 3.3V pulse if you solder SJ2 closed on the EasyDriver).
• The EasyDriver has an on board voltage regulator for the digital interface that can be set to 5V or 3.3V.
• Connect a 4-wire stepper motor and a microcontroller and you've got precision motor control.
• EasyDriver drives bi-polar motors, and motors wired as bi-polar. I.e. 4,6, or 8 wire stepper motors.

Reference

• https://learn.sparkfun.com/tutorials/easy-driver-hook-up-guide/all
• https://www.youtube.com/watch?v=nafoHAhz8Ys
• https://www.youtube.com/watch?v=S_L_SqZr1jM
