Description

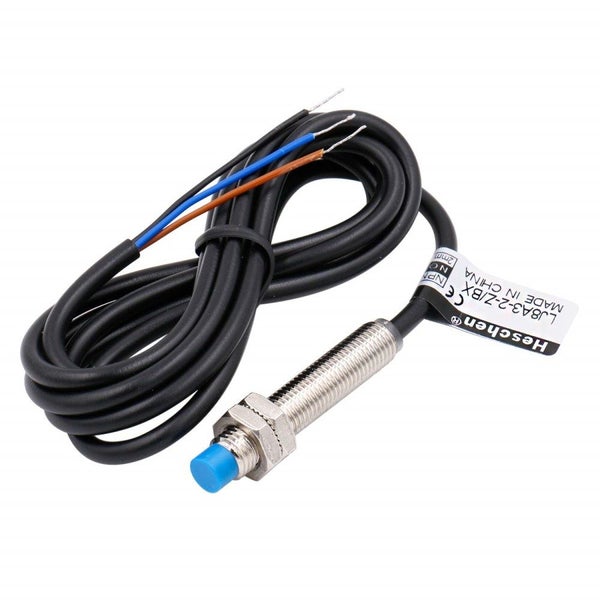

Proximity Sensor Inductive Detection Switch PROX
NPN and PNP types available
NPN:

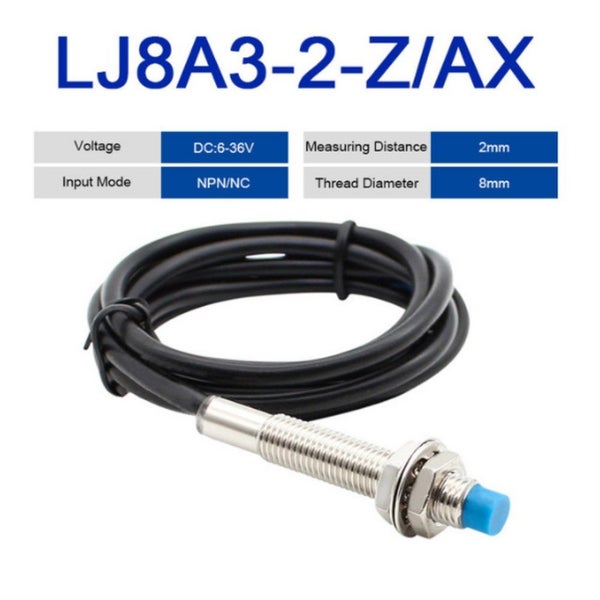

LJ8A3-2-Z/AX Inductive Proximity Sensor Switch NPN DC6-36V
Voltage: DC 6-36V
Output current: 200mA
3 Wire cable approx 1m
Output state LED for easy setup
Polarity: NPN
Dimension: M8 x 50mm
Detection Distance: 2mm
Output Status: Normally Closed
Part number: LJ8A3-2-Z/AX
PNP:
LJ8A3-2-Z/AY Inductive Proximity Sensor Switch PNP DC6-36V
Voltage: DC 6-36V
Output current: 200mA
3 Wire cable approx 1m
Output state LED for easy setup
Polarity: PNP
Dimension: M8 x 50mm
Detection Distance: 2mm
Output Status: Normally Closed
Part number: LJ8A3-2-Z/AY
NPN: LJ12A3-4-Z/AX Inductive Proximity Sensor Switch NPN DC6-36V Voltage: DC 6-36V Output current: 300mA 3 Wire cable approx 1m Output state LED for easy setup Polarity: NPN Dimension: M12 x 55mm Detection Distance: 4mm Output Status: Normally Closed Part number: LJ12A3-4-Z/AX
PNP:
LJ12A3-4-Z/AY Inductive Proximity Sensor Switch PNP DC6-36V
Voltage: DC 6-36V
Output current: 300mA
3 Wire cable approx 1m
Output state LED for easy setup
Polarity: PNP
Dimension: M12 x 55mm
Detection Distance: 4mm
Output Status: Normally Closed
Part number: LJ12A3-4-Z/AY
NPN NC/NO: LJ12A3-4-Z/CX Inductive Proximity Sensor Switch NPN NO+NC DC6-36V Voltage: DC 6-36V Output current: 300mA 4 Wire cable approx 1m Output state LED for easy setup Polarity: NPN Dimension: M12 x 55mm Detection Distance: 4mm Output Status: Normally Closed + Normally Open Part number: LJ12A3-4-Z/CX
Whats Shipped 1 x Proximity Sensor Inductive Detection Switch PROX NPN or PNP of your choice
We dont mark up on shipping so be assured of the best deal possible, LOWEST prices on product and shipping, combined shipping welcome ! Just pay the highest courier charge of any item and the rest travel for free, any amount! We use CourierPost and deliver to PO boxes All goods located in NZ All goods come with 12 month RTB warranty Thanks
