Crestron CNPWS-75 Cresnet Power Supply, 75 Watts Used Refurbished Unit

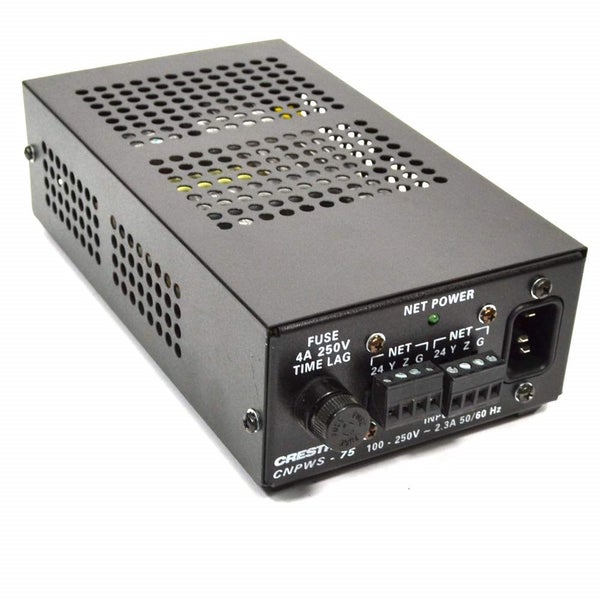

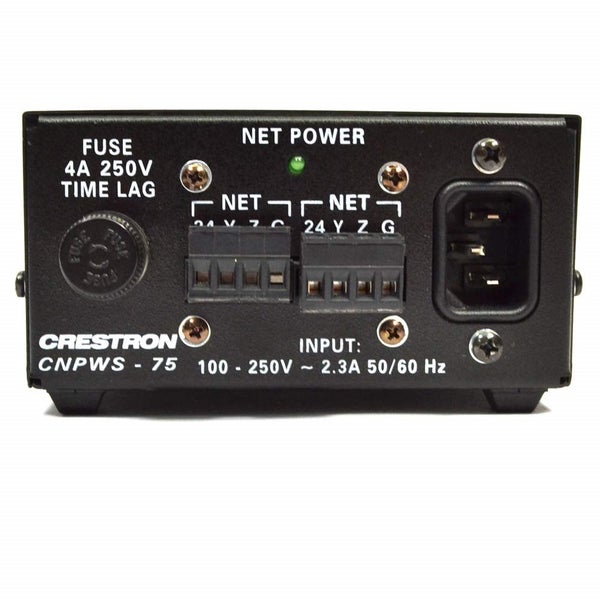

The CNPWS-75 is a 75 Watt, 24 Volt regulated power supply for powering Cresnet control systems and devices. Two 4-pin network connectors are provided, wired in parallel to provide for versatile connectivity with pass-thru of the Cresnet data signal. The output is fuse protected. Up to three CNPWS-75 power supplies may be rack mounted together using the optional CNXRMAK (sold separately). Load Rating 75 Watts (3.125 Amps) @ 24 Volts DC regulated Ripple / Noise <300 mV Load Protection 4A, 250V, Time Lag fuse Power Requirements 2.3 Amps, 100-240 Volts AC, 50/60 Hz Connectors NET (2) 4-pin 5mm detachable terminal blocks; Cresnet power output ports, paralleled; Cresnet data ‘Y’ and ‘Z’ terminals pass-through only Power (1) IEC320 Socket; Mates with removable power cord, included LED Indicators NET POWER Indicates 24 Volts DC at both Cresnet power ports, extinguished when fuse is blown

PICTURE IS JUST FOR INDICATION ONLY

LISTING IS FOR ONE ITEM ONLY

THE COMPUTER WAREHOUSE MANUKAU We Provide Sales and Service for all IT related Items One of the Biggest Refurbised IT stockist in the area Please Note restocking fees will apply for return of working items
