Description
Summary

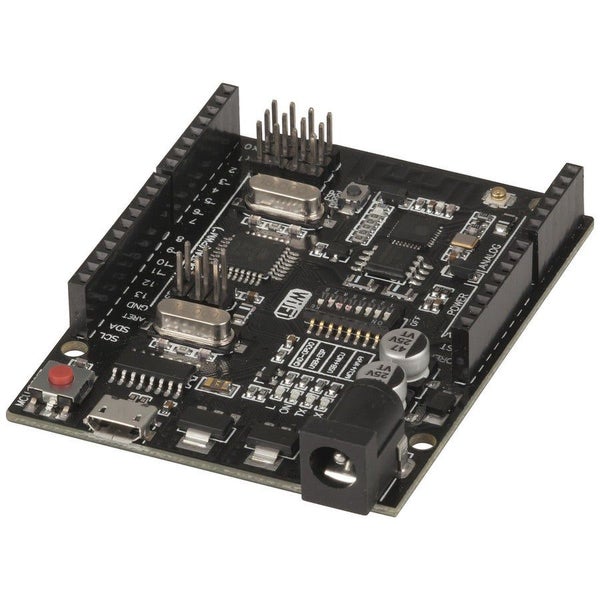

An Arduino-Compatible UNO board integrated with an ESP8266 Wi-Fi module, enabling easy cloud connectivity without extra modules. It features the ATmega328P microcontroller and a standard UNO layout. The board includes DIP switches to configure serial connections between the two processors. A Micro USB lead is used for computer connection. Both processors require code upload and switch configuration for communication.
Features
- Arduino-compatible UNO board with integrated ESP8266 Wi-Fi
- Uses ATmega328P microcontroller
- Standard UNO layout
- DIP switches to configure serial connections
- Connects via Micro USB lead
- Enables cloud connectivity without additional modules
Specifications
- Microcontroller: ATMega328 + ESP8266
- Fully Arduino compatible: Yes
- External port type: USB Micro Type B
- Number of USB ports: 1
- USB Port Types: USB Micro Type B
- Length: 65mm
- Width: 50mm
- Height: 15mm
- Weight: 25g
- Supported Wi-Fi Modes: 802.11n, 802.11g, 802.11b
- Transmission frequency: 2.4GHz
- Transmission range: 100m
- Receiver Antenna Style: Internal Antenna
- Transmission power: 10mW
- Transmitter Antenna Style: Internal Antenna
Notes
You must upload code to both processors and configure the DIP switches for them to communicate. More details are available in the manual.
Documents
The following documents are available to download from the Folders website:
- Manual
