Description:

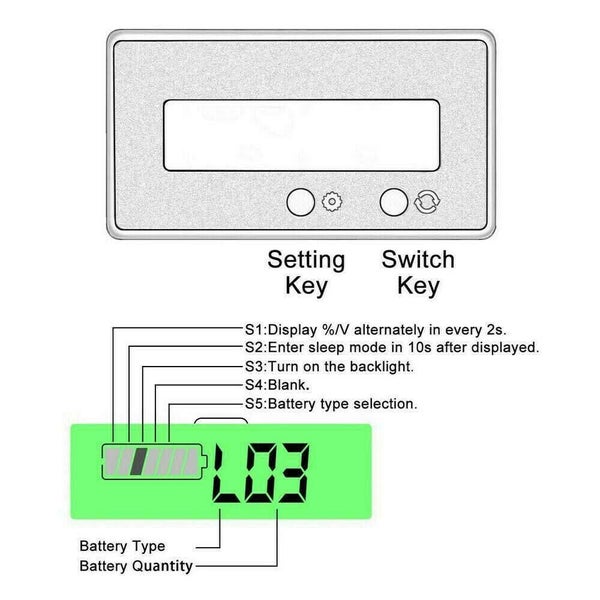

• Waterproof shell with a button for switching from Capacity, Voltage and Turn off the screen.
• Monitoring the battery capacity and voltage by this mini tester.
• Easy to read the value in dark environment with the green backlight.
• Automatically turn into sleep mode in 10s for saving the power.
• Suitable for testing the capacity of 3.7V Lithium Batteries, Lead Acid Batteries and Fe Batteries.
• Simple connection, with reverse protection, won't burn if connect reversely.
• For checking to remain capacity of batteries, directly display with battery capacity sign and percentage.
• Widely used for car, motorcycles, scooters, bikes, test equipment, etc.

Specifications:

• Item name: Battery capacity volt tester
• Color: Black
• Backlight color: Green
• Screen size: 61.3 mm x 33.3 mm x 13.5 mm/2.41inch x 1.31 inch x 0.53 inch
• Voltage range: 6-63V
• Circuit load current: 5 - 6mA
• Suitable for: 3-15pcs 3.7V Lithium Batteries; Lead Acid Batteries 12V, 24V, 36V, 48V; Fe Batteries
• Dimensions: 61.3 x 33.3 x 13.5 mm / 2.41 inch x 1.31 inch x 0.53 inch
• Mounting hole Size: 58 x 28.1 mm / 2.28 inch x 1.11 inch
• Wire Length: 30 cm / 11.8in

Package incldues:

• 1 x Battery Capacity Volt Tester
• 1 x Cable
