Description
Summary

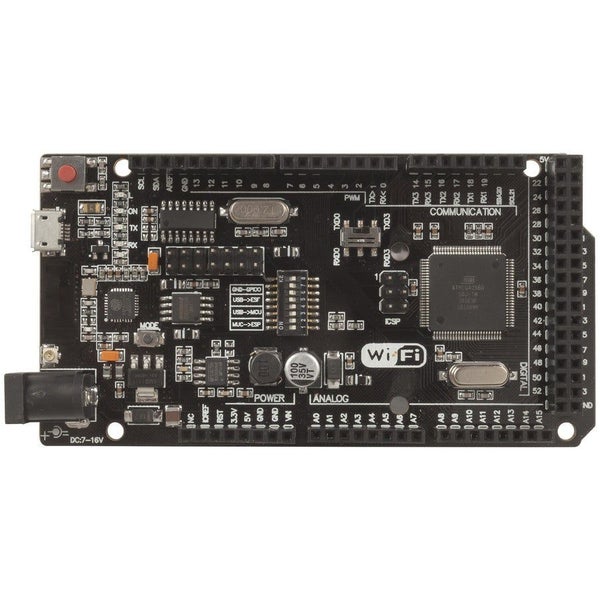

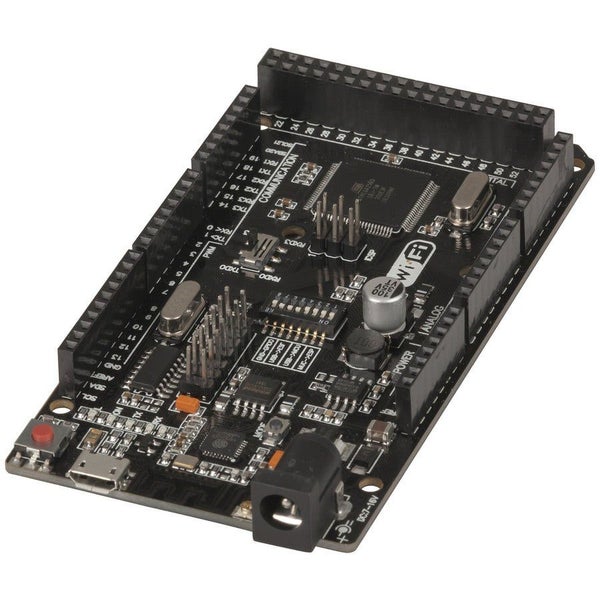

Duinotech MEGA board with integrated ESP8266 is an Arduino-compatible board that simplifies connecting projects to the cloud without extra shields. It features the ATmega2560 microcontroller and standard MEGA layout with DIP-switches to configure serial connections. The board offers more IO pins, memory, PWM outputs, analog inputs, and serial ports than the UNO board, making it ideal for projects needing expanded inputs, outputs, and memory. Despite its size, standard shields fit directly onto the board. It uses a Micro USB lead for computer connection.
Features
- Arduino compatible with integrated ESP8266 Wi-Fi
- ATmega2560 microcontroller with standard MEGA layout
- DIP-switches for serial connection configuration
- More IO pins, memory, PWM outputs, analog inputs, and serial ports than the UNO
- Supports uploading code to both processors with switch configuration for communication
- Uses Micro USB Type B port for connection
- Compatible with standard shields despite elongated size
Specifications
- Microcontroller: ATMega2560 + ESP8266
- Fully Arduino compatible: Yes
- External port type: USB Micro Type B
- Number of USB ports: 1
- USB Port Types: USB Micro Type B
- Length: 100mm
- Width: 50mm
- Height: 15mm
- Weight: 40g
- Supported Wi-Fi Modes: 802.11n, 802.11g, 802.11b
- Transmission frequency: 2.4GHz
- Transmission range: 100m
- Receiver Antenna Style: Internal Antenna
- Transmission power: 10W
- Transmitter Antenna Style: Internal Antenna
- Transmission standard: WiFi
Notes
- Requires uploading code to both processors and configuring DIP-switches for inter-processor communication
- Uses Micro USB lead for computer connection
- More memory (8x program memory compared to UNO) allows larger programs
- See manual for detailed configuration and usage instructions
