Description
Summary

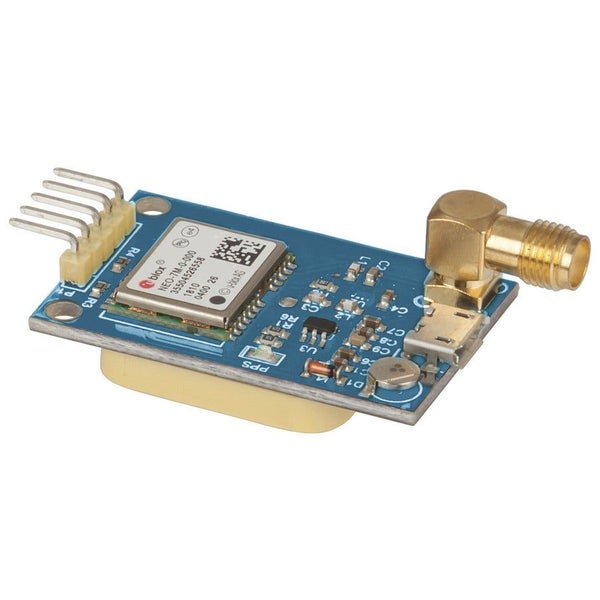

Add GPS positioning down to a 2.5m accuracy to your next project with this compact GPS module. Based on the NEO-7M that supports the NMEA standard protocol output, it features built-in flash to save settings after power-off without an external EEPROM. An onboard ceramic antenna means you don't need an external one, but an SMA connector is also included if you wish to attach your own antenna to improve reception. The micro USB interface enables debugging via a data cable, and a reserved serial port interface allows easy GPS data reception with USB-to-serial modules or external MCUs.
Features
- On-board signal LED indicator
- 3.3V or 5V operation
- Onboard and external antenna options
- 9600 Baud Rate
- 1Hz Output Frequency
Specifications
- Required Supply Voltage: 3.3V
- Length: 53mm (including SMA socket)
- Width: 26mm
- Height: 15mm
- Weight: 18g
Notes
When connecting an external antenna, the C2 capacitor on the module needs to be removed. Using both internal and external antennas together will cause interference and affect positioning accuracy.
