Description
Summary

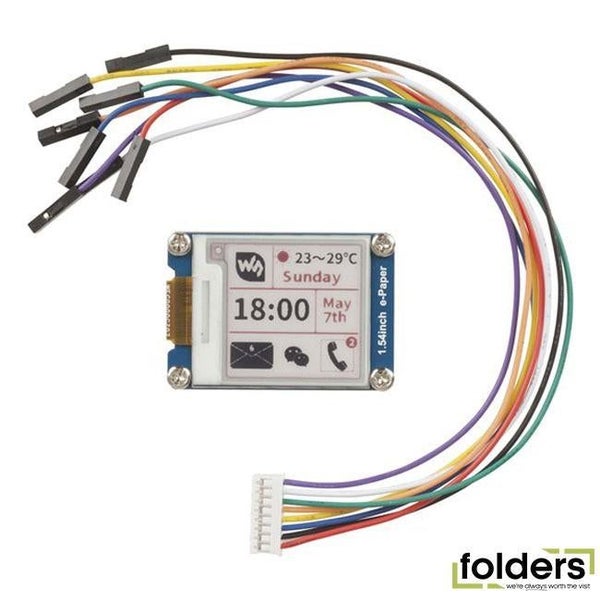

This Duinotech 1.54 inch monochrome e-ink display module uses E-ink technology to show black, white, and red text and graphics on a 200 x 200 pixel screen. It consumes very little power during refresh and retains the last displayed content for a long time without power. The screen reflects ambient light, eliminating the need for a backlight and allowing easy reading in bright sunlight. It has a wide viewing angle over 170o, operates at 3.3V, and communicates via an SPI interface compatible with Arduino and other microcontrollers.
Features
- Black, white, and red display
- 2 levels of grey
- SPI interface
- 0.3s partial refresh time
- 2s full refresh time
- Low refresh power (26.4mW)
- Extra low standby power (<0.017mW)
- Not backlit
- Wide viewing angle (170o horizontal and vertical)
Specifications
- Screen resolution horizontal: 200 pixels
- Screen resolution vertical: 200 pixels
- Aspect ratio: 1:1
- Viewing angle vertical: 170o
- Viewing angle horizontal: 170o
- Overall dimensions length: 48.0mm
- Overall dimensions width: 33.0mm
- Overall dimensions height: 9.0mm
- Weight: 14.0g
- Required supply voltage: 3.3V
- Dot pitch width: 0.138mm
- Dot pitch height: 0.138mm
- Display size length: 27.6mm
- Display size width: 27.6mm
Notes
- Compatible with Arduino and other microcontrollers via SPI interface
- Reflective screen technology avoids need for backlight
