Available to ship from Auckland

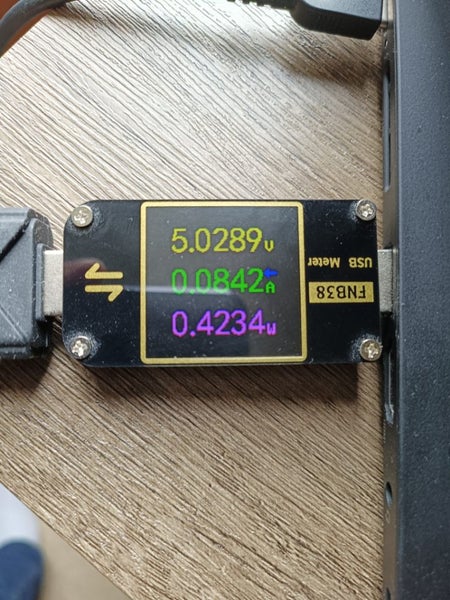

Feature: *USB color screen tester: It is a highly reliable and safe USB voltage and current detection meter and mobile communication terminal fast charging trigger *Small product with great effect: Diversified practical functions, driver-free host computer upgrade, fast charge trick, data storage, Chinese and English interface, standby brightness, precision measurement, energy capacity detection, fast charge identification, screen flip, intelligent recording *Compatible with multiple interfaces: 1.44-inch TFT LCD high-definition display integrated USB-A, -USB, Type-C interface using external 16-bit ADC, PD protocol physical chip *Protocol trigger: fast charge protocol detection, PD protocol trigger, QC2.0 trigger, for QC3.0 trigger, FCP trigger, SCP trigger, AFC trigger

Specification: Part Name: USB tester Model: FNB38 Material: Metal and Plastic Color: Black Product size: 69309.5mm Range, resolution Input voltage: 424V, 0.1mV Input current: 05A, 0.1mA Input power: 0120W, 0.1mW Load equivalent internal resistance: 09999.9O, 0.1mO D+/D- voltage: 03.3V, 0.01V Device temperature: 1°C, 1°F Capacity: 09999.9mAh, 0.0001mAh Electricity consumption: 09999.99Wh, 0.00001Wh Cable internal resistance: 0~9999.9O, 0.0001O Equipment running time: 999 hours, 59 minutes and 59 seconds, 1 second Recording time: 999 hours, 59 minutes and 59 seconds, 1 second

NOTE:

1. Do not connect a power supply exceeding 24V to the tester.
2. The FNB38 USB-A input port supports high-power input (such as 20V*5A=100W). The USB-A output port can withstand 5A current for a short time. The -USB input port does not support high current and high power, and its input current cannot exceed 2.5A. When working with high current and power, it is recommended to use Type-C female output.
3. The HID-USB interface is only used for data transmission.
