Summary

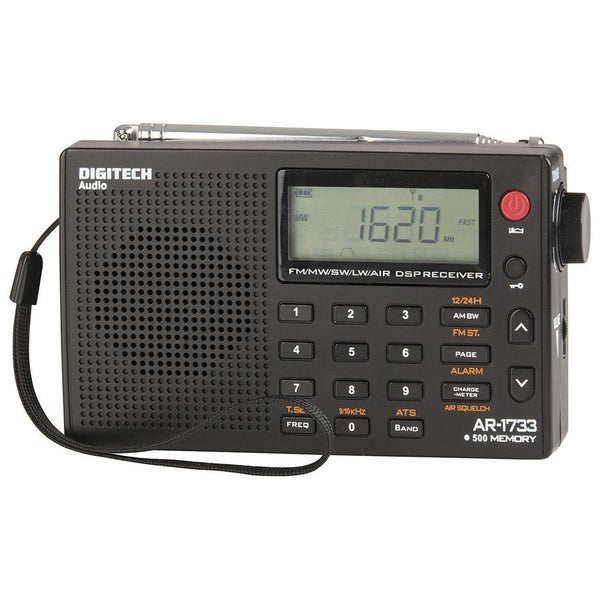

A PLL world band radio with an easy-to-use interface and a rich feature set. It offers 5 bands: FM, AM (MW with 9k or 10k step), SW, LW, and AIR. Users can tune using fast or slow scroll and store up to 500 favorite stations.

Features

• 500 programmable memory bank
• Sleep function up to 120 minutes
• Manual, auto, or preset station search
• Battery indicator
• Includes carry case
• Lock button
• AM (MW) coverage: 522 - 1620 kHz (9k) and 520 - 1710 kHz (10k)
• FM coverage: 87.5 - 108.0 MHz
• SW coverage: 2300 - 26100 kHz
• LW coverage: 153 - 279 kHz
• AIR coverage: 118 - 137 MHz

Specifications

• Width: 120 mm
• Height: 75 mm
• Depth: 30 mm
• Type of Radio: FM
• FM Frequency Range: 87.5 MHz - 108 MHz
• RF Gain Controls: Yes
• MW (AM) Frequency Range: 520 kHz - 1710 kHz
• Bass Controls: No
• Treble Controls: No
• Earphone Socket: Yes
• Keylock: Yes
• Power Source: Mains power supply
• IF Output: No
• Line In: No
• Line Out: No
• External Antenna Connection: No
• SW Frequency Range: 2300 kHz - 26100 kHz
• LW Frequency Range: 153 kHz - 279 kHz
• Battery Quantity: 2 AA batteries
• Batteries can be replaced by user: Yes
• Battery used for Main Product
• Compartment Location: Back
• Battery compartment kept closed by: Clip
• DC Plugpack Voltage: 5V DC
• Current Draw: 0.5A

Notes

Most AM broadcasting in Australia uses the medium frequency band between 526.5 kHz and 1606.5 kHz with 9 kHz spacing. The radio allows tuning above this range. To switch AM tuning from 522-1620 kHz (9 kHz step) to 520-1710 kHz (10 kHz step), turn the radio off, press and hold the 9/10 kHz button until "MW 10kHz" appears. This enables tuning with 10 kHz spacing. Enter exact frequencies using the FREQ button and keypad. Pressing the 9/10 kHz button again returns to 9...
