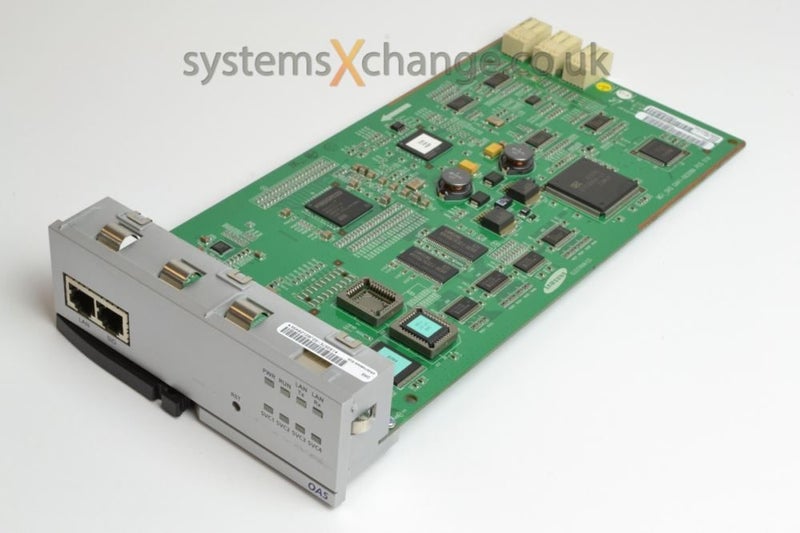

Samsung OfficeServ 7200 PABX Phone system Card Samsung OfficeServ 7200 OAS CARD KP0574BOAS/AUA Samsung Officeserv OS7100, OS-7200, 7200-S & 7400 OAS Can be used in The OfficeServ™ 7100 / 7400 also The OfficeServ™ 7100 is a powerful platform for maximizing business potential, profitability and efficiency.

u r bidding for the Expansion card only

OAS (OPTIONAL APPLICATION SERVICES)

The OAS card provides 64 digital signal processors (DSP’s) that can be configured as MGI channels, MOBEX DTMF receivers used by the Executive MOBEX feature, or a mix of the two. MGI channels are enabled in 4 port increments, and each increment will decrease the available MOBEX DTMF receivers by 16. In addition to these configurable DSP’s the OAS card provides 32 DSP’s dedicated to providing 64 Media Proxy Service (MPS) channels. The OAS card can be installed in any universal slot in any cabinet. If installed in an expansion cabinet, however, the number of configurable DSP’s is reduced to 32 due to the timeslot restrictions in expansion cabinets. A maximum of 4 OAS cards can be installed, allowing up to 256 Executive MOBEX users, 64 MGI channels, or a mixture of each, and up to 256 MPS channels. Every call that uses an MPS channel will actually use two (2) MPS channels.

Note: Executive MOBEX is a licensed feature.

This card requires an available slot in the OfficeServ 7100/7200 main cabinet. Feel free to ask any questions

Pick up monday and Tuesday only

This Photo is only for indication

Happy Bidding
