Package Contents:

1 x piece (select option required)





This is a multi-variant listing. The price is for 1x variant option only. Select option required from the menu. NOT everything in the photos is included for each option)







SPECIFICATIONS



Withstand power: 400W PEP



Voltage at discharge start: DC350V

VSWR: ?1.2

Model Number: Lightning Arrester

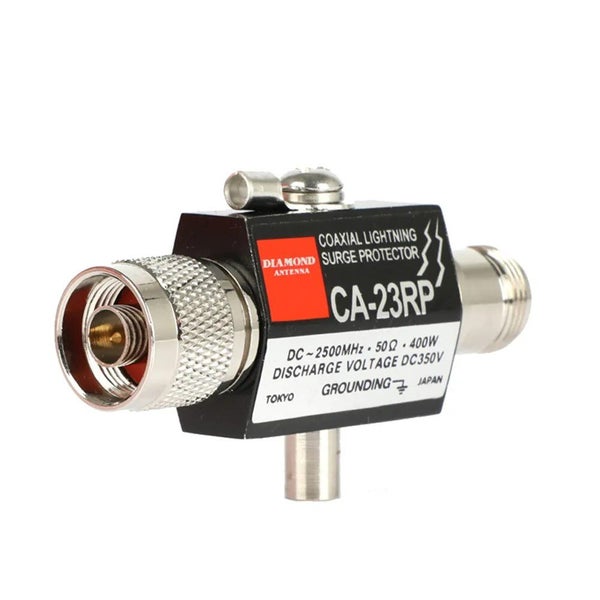

Model Number: CA-23RP/CA-35RS

Item Type: Switches

Is Smart Device: no

Insulating Resistance DC-100V: Over 10,000M?

Insertion Loss: ?0.25dB

Impedance: 50 ohm

ITEM TYPE: Antenna

Frequency Range2: DC-2500MHz

Frequency Range1: DC-1000MHz

Discharge voltage of shock wave: 1000V

Current: 6000A

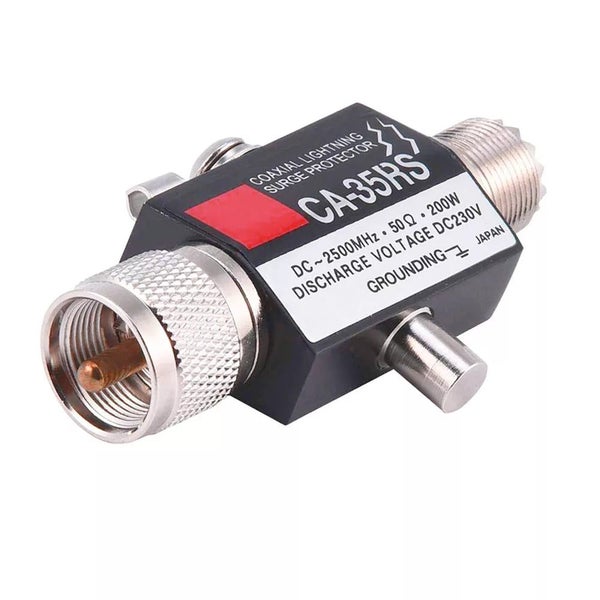

CA-35RS PL259 SO239 Radio Repeater Coaxial Anti-Lightning Antenna Surge Protector

Brand new and high quality

requency Range:DC-1000MHz

V.S.W.R?1.1

Loss ?0.2dB

Withstand power?400W PEP

Voltage at discharge start?DC350V+-15%

Discharge voltage of shock wave(1 x 40)uS?1,000V

Withstand current of shock wave(1 x 40)uS?6,000A

Repetitive discharge of shock wave(1 x 40)uS 500A,over 500 times?DC350V±20%

Insulating resistance DC 100V?Over 10,000M ohm
