Description
100% Brand new, high quality.
TECHOMAN Cut Length Ultra Low Loss Professional Cable Similar to LMR400, better than RG-213 and RG-8 .

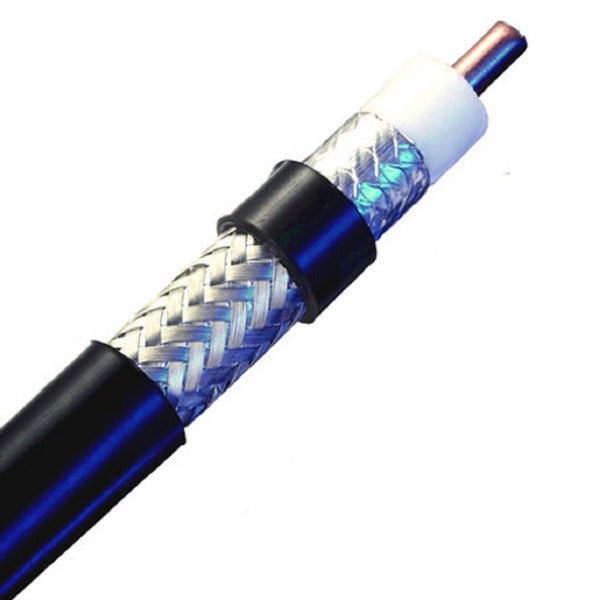

50 Ohm SLMR-400 antenna cable is a 10mm diameter feeder with a double braid made of aluminum foil and a dense braid wire. The central conductor (centre hot wire) is made of a single wire with a diameter of about 3mm. The wire is made of aluminum covered with a thick layer of copper. Outdoor rated Radio Antenna RF Coaxial Cable sold Per Cut Metre.
Exceptional cable with impressive low loss from HF, VHF, UHF to 6 GHz . Great premium transmission coaxial cable for commercial, broadcast, amateur radio or UHF PRS antenna feed lines.
Loss Specifications Per 100 Metres:
400MHz 6.8dB/100m 900MHz 12.96dB/100m 1800MHz 18.29dB/100m 2500MHz 21.87dB/100m 3000MHz 24.32dB/100m
Specifications:
- Outer Diameter: 10.12mm-10.22mm (RG-8 Size)
- Centre (Hot) Conductor: CCA (copper-clad aluminum wire) diameter: 2.735mm-2.740mm
- VSWR: 1.11
- Impedance: 50.6 ohms
- Insulation Diameter: 7.21-7.25mm
- Insulation Concentricity: 96.8%
- Insulation Thickness: medium - 2.31mm, minimum: 2.20mm
- Armor braid: 24 sets of 8 tinned copper wires with a cross-section of 0.16mm
- Armour outer diameter: 7.83-7.92mm
- Outside Cover Material: Black smooth polyethylene (PE)
Package:

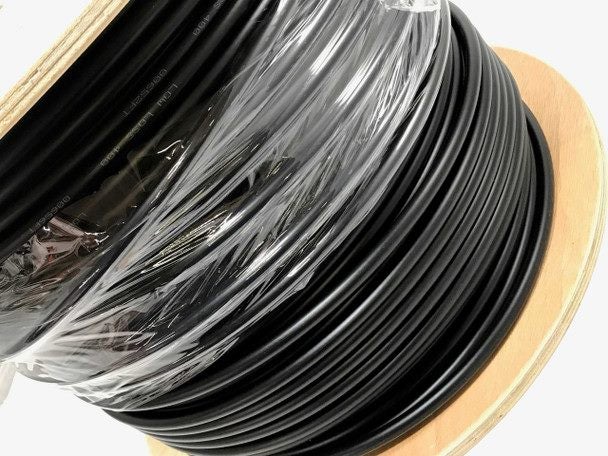

Premium SLMR400 Antenna Coax Cable Cut Per Metre
