Description
100% Brand new and high quality!

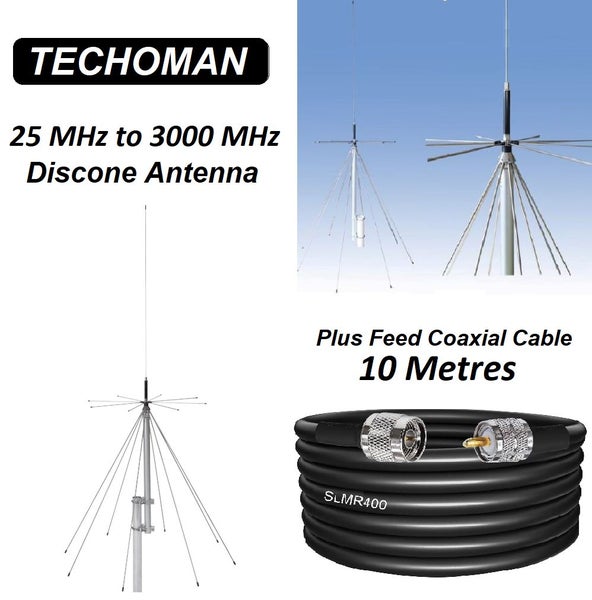

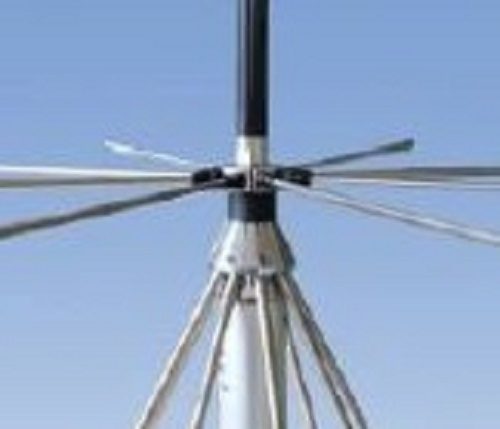

The TECHOMAN TM-D3000N Super Discone is an ultra-wide band antenna identical to the Diamond D3000N and capable of covering 25 MHz to 3000 MHz continuously plus 10 metre ultra low loss feed coaxial cable.
The exceptionally versatile frequency range of 25 - 3000 MHz is due to its concept, design and quality build. This wide frequency range makes it the perfect wide-band antenna for all popular uses, such as: Scanner Receivers, Amateur Operators, CB'ers, VHF and UHF Commercial, Aviation Air Band, VHF Marine, ISM, Cellular users and more ...
Rust-free stainless steel is employed in major component parts making the antenna rust resistant and durable.
Easy to assemble, requiring only one Allen key (provided) with 2 support brackets for pole mounting, together with U bolts to allow mechanical mounting onto a vertical pipe up to 50mm diameter. Made of stainless steel, chromed brass and anodized aluminium to guarantee the best efficiency and performance these antennas are made to perform!
Antenna: RX bandwidth: 25-3000 MHz TX frequencies (@ SWR =2): 49.5-50.5, 120-180, 215-300, 415-465, 610-650, 710-1000, 1130-1300 MHz Impedance: 50 Ohm Polarization: linear vertical Radiation (H-plane): 360° omnidirectional Gain: 0 dBi – 2.15 dBi @ lowest frequency Max. power (CW) @ 30°C: VHF: 300 Watts UHF: 200 Watts Materials: Stainless Steel, Chromed Brass, Nylon Mounting mast: Ø 25-50 mm Connector: N-female, gold plated central pin
Cable:
- Cable Length: 10 metres
- 50-ohm coaxial cable. SLMR400 type
- Typical Impedance : 50 +/-2 ohms.
- Nominal Diameter : 10.29 mm +/- 0.1mm.
- Connectors - N-Plug to PL259 Plug
Cable Loss: @25 MHz 0.3dB @50 MHz 0.3dB @100 MHz 0.5dB @150 MHz 0.6dB @450 MHz 0.9dB @1 GHz 1.5dB @2 GHz 2.5dB @3 GHz 2.9dB
Package:
1x TECHOMAN 25 MHz to 3 GHz Discone Ultra-Wide Band Antenna as pictured plus 10 metres of SLMR400 Coaxial Cable
