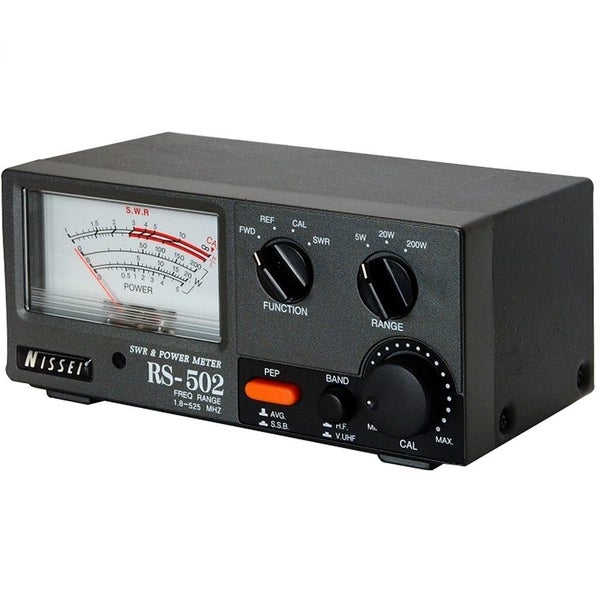

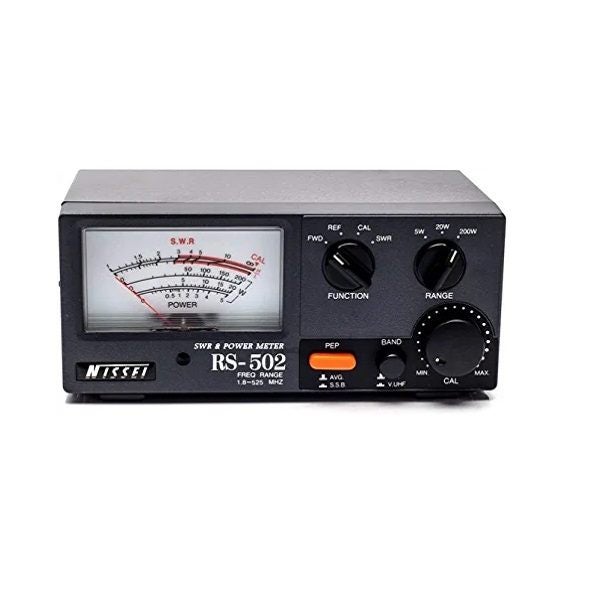

Nissei RS-502 Analog Radio SWR / RF Test Meter HF ~ VHF ~ UHF 1.8 to 525 MHz

The Nissei RS-502 SWR Meter and Watt Meter allows the SWR measurement for HF and VHF-UHF frequencies continuous from 1.8 to 525 MHz and power up to 200 Watts maximum.

The Nissei RS-502 Analog RF Transmitter Measurement Meter includes a large, easy to read meter with back light , 3-function test meter designed to indicate the condition of any 50 ohm antenna and antenna coaxial feed line between 1.8 MHz and 525 MHz. This includes the popular 26 MHz to 27 MHz Citizens Band frequencies, 2 metre and 70 cm Amateur bands plus lots more commercial bands including FM broadbact transmission between 88 and 108 MHz. The meter can measure 3 functions in the one unit - SWR, forward power and reflected power - ideal for testing coaxial feed lines, connectors and tuning antennas. You will need a transmitter or signal transmitting source to measure.

Features:

• Indicates the condition of a 50 ohm antenna and coaxial feed
• Tests for SWR, Forward and Reverse RF Power
• Has PEP (Peak Envelope Power) switch for SSB and AM transmissions
• Brilliant frequency span - often 2 SWR meters are required to cover HF, VHF and UHF frequencies

Specifications:

• Frequency Range: 1.8 - 525 MHz Continuous
• Illuminated meter (with power cable included)
• Measures direct power and reflected power
• Power Range: 5 / 20 / 200 Watts
• Minimum measurement power for SWR: 1 Watt
• Measurement accuracy: +/- 5%
• Antenna Connector: Female UHF (SO-239)
• Dimensions 190(w) x 135(h) x 85(d) mm
• Weight: 980 grams

Package includes:

1x Nissei RS-502 1x Power cable for 13.8V . 1x English Manual
