Description
Summary

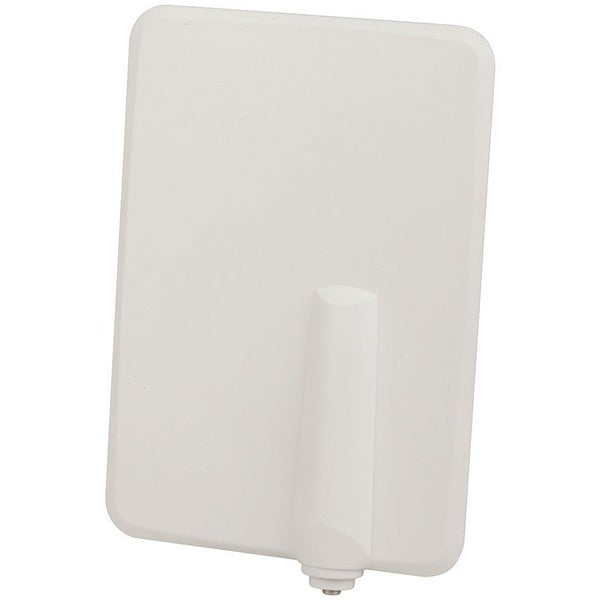

This slim indoor/outdoor antenna is easy to install and comes with mounting hardware for wall, mast, or rail mounting. It features an in-built amplifier with a 4G/LTE filter for optimal UHF and VHF signal reception suitable for DVB-T, DVB-T2, and DAB radio. The weatherproof IPX4 design allows horizontal or vertical mounting for best positioning. Reception distance is up to 25km indoors and up to 50km outdoors from the TV tower.
Features
- 11/19dB Gain
- 4G/LTE Filter
- In-Built Amplifier
- Weatherproof
- Mast/Rail & Wall Mount
- Up to 25km Indoor Range (up to 50km Outdoor)
Specifications
- Usage Location: Indoor, Outdoor
- UHF Frequency Range: 470MHz-694MHz
- VHF Channels Covered: 6ch-12ch
- UHF Channel Range: 25ch-69ch
- Antenna Type: Flat Panel
- VHF Frequency Range: 170MHz-230MHz
- VHF Gain: 11dB
- Reception Bands: TV Band 3: 174-230MHz, TV Band 4: 526-582MHz, TV Band 5: 582-694MHz
- UHF Gain: 19dB
- Mounting Method: In Wall, Pole Mount
- RF type: PAL/Belling-Lee
- RF impedance: 75Ohm
- DC Voltage: 5V
- DC current rating: 550mA
- IP Rating: IPX4
- Suitable PSU Included: Yes
- DC Current Draw: 400mA
- Width: 165mm
- Height: 230mm
- Depth: 5mm
- Line of Sight Range: 25km-50km
Notes

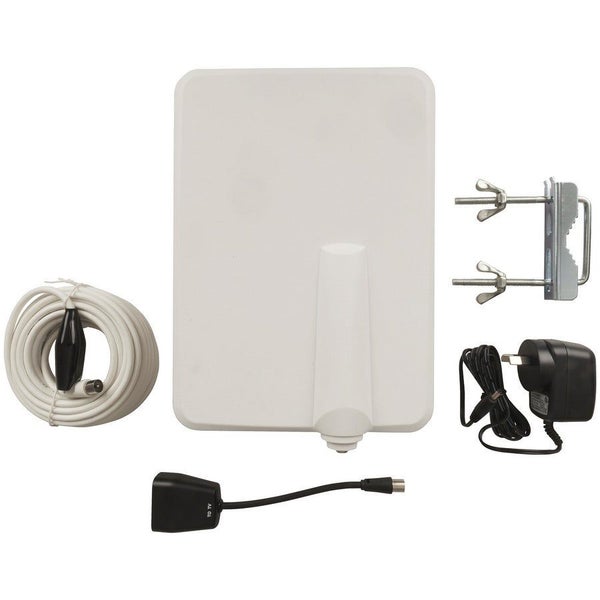

Included in the package:
- 1 x Indoor/Outdoor UHF/VHF Antenna
- 1 x 4m F to F Antenna Cable
- 1 x 4m F to PAL Antenna Cable
- 1 x Flat Window Antenna Cable
- 1 x F to F Adaptor
- 1 x Power Injector
- 1 x Mains Power Adaptor
- 1 x Mast/Rail Clamp
- 1 x Mast/Rail & Wall Mounting Hardware
Reception distance varies depending on location and obstacles such as buildings or walls.
Documents
The following documents are available to download from the Folders website:
- Manual
