Lenkeng HDMI DVBT Modulator

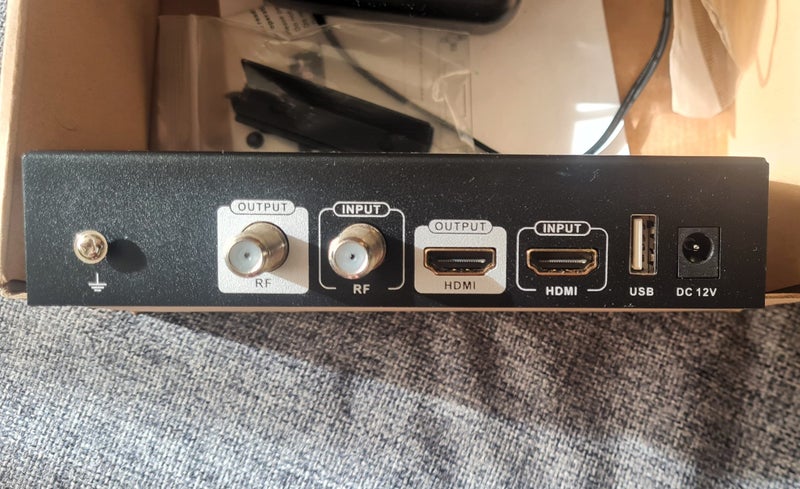

LENKENG LKV379P-DVB-TV2 HDMI to RF Digital Modulator with HDMI Loop Out Port. Supports Full HD 1080p30Hz. LCD Display, Menu Navigation Keys, 12V DC Power Adapter (Included).

This is an HDMI to DVB-T Converter, the perfect solution to distribute the HDMI signal to DVB-T1 standard digital cable television via coaxial cables. Output can be set as any channel number and distributed to all the TVs in the system directly via Aerial splitter, co-existing with all your current regular channels. Multiple HDMI to DVB-T converters can be installed to distribute as many channels as you need. It’s a perfect solution for monitor systems, outdoor large-screen displays, shopping mall advertisements and media education fields, etc.

Features

Distributes 1x HDMI signal to DVB-T1 standard digital cable television via coaxial cables Supports source to multiple displays via CATV splitter Supports DVB-T1 digital HD RF signal output Supports resolution up to FHD 1080p @ 60Hz Wall-mountable Easy installation HDMI Signal HDMI1.3, fully compatible HDCP HDMI Loop Out Port Yes HDMI DDC Signal 5Vp-p (TTL) HDMI TMDS Signal 0.5 ~ 1.5Vp-p (TMDS) Input HDMI Resolution Supported 480 i@ 60Hz, 480p @ 60Hz, 576i @ 50Hz, 576p @ 50Hz, 720p @ 50/60Hz, 1080i @ 50/60Hz, 1080p @ 50/60Hz HDMI Graphics Resolution 1280x720 @ 60Hz, 1920x1080 @ 60Hz Video Encoding H.264 Audio Encoding MPEG2 Coaxial Output Standard DVB-T1 Coaxial Cable Required RG6, RG7, RG11

Frequency 177.5 ~ 866MHz Effective Bit Ratio Max: 24M bits Insert Loss +2dBm RF output Wattage (TX) -10dBm ~ -13dBm Delay Time 200-300ms (Depends on the decoding ability of receivers) Audio Format Stereo PMC (44.1kbps, 48kbps) Power DC 12V/1A Product Consumption <5W
