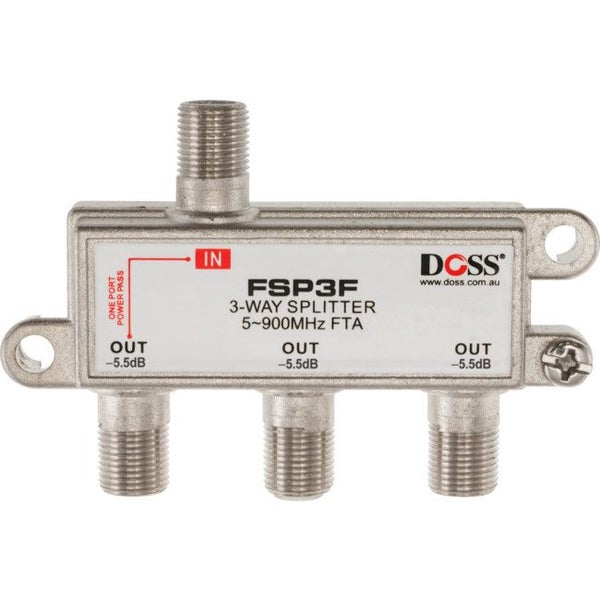

• 3-Way 75Ohm coaxial splitter
• 5~900MHz Splitters with power pass on one leg
• Metal shielded case with "F" type sockets
• Un-balanced*
• Output dB loss was tested @ 694mHZ Specifications: FSP2F FSP3F FSP4F FSP6F FSP8F Frequency Range(MHz) Nominal Nominal Nominal Nominal Nominal Insertion Loss 5-47MHz 4.2 5.8 8.2 11.5 12.5 (Max dB) 48-450MHz 4.2 5.8 8.2 11.5 12.5 451-750MHz 4.2 6.5 8.2 11.5 12.5 751-900 MHz 4.2 7 8.2 11.5 12.5 ISOLATION 5-47MHz 20 20 20 20 20 Out-out 48-450MHz 20 20 20 20 20 (Min dB) 451-750MHz 20 20 20 20 20 751-900 MHz 20 20 20 20 20 Return Loss 5-47MHz 18 18 18 16 18 Input 48-450MHz 18 18 18 16 18 (Min dB) 451-750MHz 18 16 16 16 16 751-900 MHz 18 16 16 16 16 Return Loss 5-47MHz 18 18 18 16 18 Output 48-450MHz 18 18 18 16 18 (Min dB) 451-750MHz 18 16 16 16 16 751-900 MHz 18 16 16 16 16 Note: Doss splitters will also function as combiners.
• When combining modulated signals, leave at least a 2 channel separation i.e. Channel 21 for the first channel and Channel 24 for the next etc.
• It is also recommended that if you also have an antenna connected to the system, you use a Digiair Pro when selecting the appropriate channels. The spectrum analyser function will display where there are the lowest levels of interference i.e. where the modulated should be placed in the radio spectrum.
