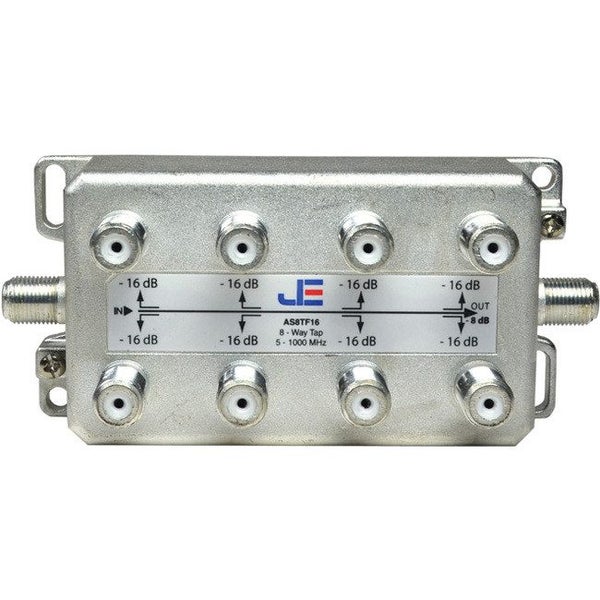

AS8TF16 8 WAY F TYPE TAP 16DB 5 - 1000MHz FOXTEL APPROVED F30740 Features:

• High tap to tap isolaton
• Suitable for CATV & SMATV
• Zinc Die Cast, Bright Tin Finish and Solder Shield Bottom Plate.
• Screening factor: Class A
• Input power pass: 30VDC 1A
• All pors F connector 75 ohm Specs: Frequency Insertion Loss (IN-OUT) dB Tap Loss (IN-TAP) dB Isolation (TAP-TAP) dB Isolation (OUT-TAP) dB Return Loss(OUT) dB 5 - 40 MHz =9.0 16 1.5 =38.0 =26.0 =16.0 40 - 470 MHz =9.5 16 1.5 =40.0 =25.0 =16.0 470 - 862 MHz =10.0 16 2.0 =38.0 =23.0 =16.0 862 - 1000 MHz =11.0 16 2.0 =34.0 =21.0 =16.0 Mechanical Specifications Impedance In/Out, Ohm 75 CE Compliance Class A Temperature Range Operating: -20oC to +60oC, Storage: -40oC to +70oC In/Out Connector F Female Dust & Water Ingress Protection Rating IP20 Minimum Housing Zinc Die Cast, Bright Tin Finish and Solder Shield Bottom Plate. Grounding Screws PM 3 6 A3 nickel-plated 2 pieces Wall Mounting Screws PA 4 18 A3 nickel-plated 2 pieces Grounding Terminal Connection Yes
