OPTUS D1, INTELSAT-19, NOT-VAST

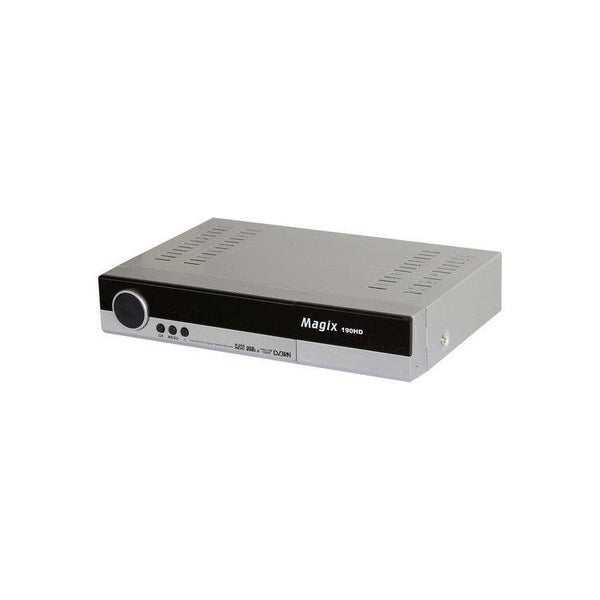

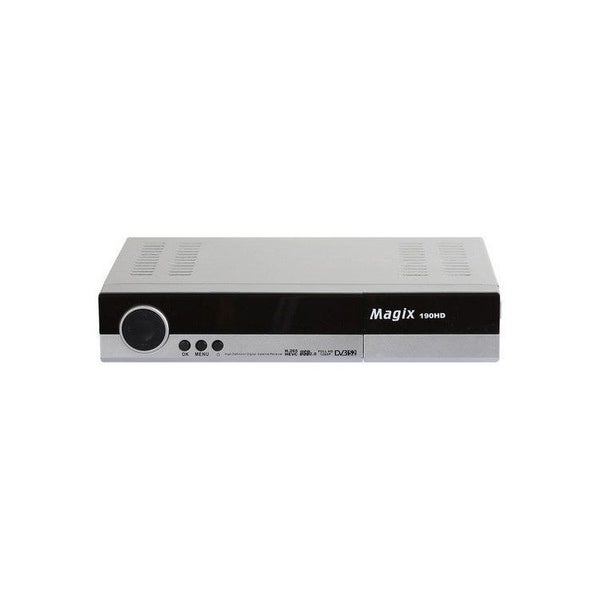

The DVBS2X-190HD MPEG4 HEVC satellite receiver features high performance dual core MIPS CPU for AV application systems. It supports higher-level H.265 compression. and still capable of receiving MPEG2 and MPEG4 H.264. The unit is FTA with all the standard satellite TV receiver features like HDMI output, CVBS output and USB PVR ready for using an optional external HDD for recording. The unit is perfect for receiving international TV and Church TV whilst living in Australia on intelsat 19 and Optus D2. It also features a RF modulator that allows you to connect the satellite receiver to a second TV using an coax cable (not included). Compliant with DVB-S2X / S2, DVB-S standards.

• International TV on Intelsat 19, Optus D2, [NOT VAST]
• Full HD 1080p HDMI and CVBS video outputs
• USB PVR Ready.
• Satellite Modulation : QPSK, 8PSK, 16APSK
• Freq Range: 950-2350MHz
• Video Codec: HEVC, .265, H.264, H.263, MPEG-5, MPEG-4, MPEG-2,
• Audio: MPEG-1/2 Layer I / II / III.
• Tuner: DVBS, DVBS2, DVBS2X
• 240Vac, 220x135x40mm, Includes remote (Requires 2x AAA batteries (included))

Compliant with DVB-S2X / S2, DVB-S standards High performance dual MIPS CPU cores for AV & application systems. Integrated broadband tuner: RF input from 950MHz to 2350MHz. Integrated crystal oscillator operating at 27MHz, Integrated RF and baseband AGC for optimal dynamic range multi-standard demodulation: QPSK, 8PSK, 8APASK-L, 16APSK(-L), 32APSK(-L). Multi-standard video decoding: HEVC, H.265, H.264, H.263, MPEG-5, MPEG-4, MPEG-2, AVS, AVS+, VC1, etc. Multi-standard audio decoding: MPEG-1/2 Layer I / II / III. Maximum channel bit rate: 170Mbps. Symbol rate from 1Msps to 54Msps. DiSEqC(TM) 2.X compliant interface. DiSEqC(TM) envelop mode supported. Standard FEC frame (64800 bits) and short FEC frame (16200 bits). HD formats supported: 480p, 576p, 720p, 1080i/p. SD formats supported: NTSC 480i, PAL 576i. Support PVR application. Low power consu...
