Description
Interface Specifications and Features Interface Input Interface
- One HDMI input+ embedded audio
- Support input resolution up to 2048x2160 pixels Host Interface
- USB 3.0, compatible with USB 2.0 OS
- Windows, Linux, Mac, Chrome OS Capture format
- Support capture resolutions up to 2048x2160
- Support capture frame rates up to 120fps
- Support 2-channel audio streams Included Software
- USB Capture Utility, Capture Express, etc. Compatible Software
- Zoom Rooms, Microsoft Teams Rooms, Skype for Business, Google Hangouts, GoToMeeting, VLC, OBS Studio, XSplit, etc. Others
- Auto detection of input signal format
- Windows, Linux and Mac SDK
- Continuously work for 24hx7
- LED status indicator
- 2-year warranty
- Form factor: 92.2mm (L) x 40.2mm (W) x 12.3mm (H) Input Features
- 165M HDMI receiver, max input 2048x1080 60fps 4:4:4
- Custom EDID
- Input RGB/YUV 4:4:4 8/10/12-bit, YUY 4:2:2 12-bit
- Up to 8-channel 24-bit HDMI-embedded audio at 192kHz
- HDMI interfaces: HDMI 1.4a Process and Capture Features
- Video processing pipeline up to 160M pixels/s
- Capture videos up to 2048x2160, frame rates up to 120fps. Outputs include (actual capture frame rate can be limited by the USB bandwidth and internal working frequency.):
- 1920x1080p 23.98/24/25/29.97/30/50/59.94/60/75
- 1280x720p 23.98/24/25/29.97/30/50/59.94/60/100/119.88/120
- 720x576p25
- 720x480p30
- Support for YUY2/UYVY/RGB24/RGB32
- Support video cropping, up/down scaling, de-interlacing, aspect ratio conversion, color format conversion, frame rate conversion, flip and mirror
- Up to 2-channel IEC60958 audio streams Included Software
- USB Capture Utility enables users to easily check and set the capture-related parameters, upgrade firmware of the capture device and export info needed for troubleshooting SDK & APIs
- The MWCapture SDK provides functions including signal status extraction, capture configuration and real-t...
Details
Condition:
Brand:
Shipping & pick-up options
| Destination & description | Price | |
|---|---|---|
| Nationwide 2-3 days, Standard | $12.00 | |
| Nationwide 2-3 days, Standard, Signature | $13.00 | |
| North Island 2-3 days, Standard | $15.00 | |
| North Island 2-3 days, Standard, Signature | $16.00 | |
| Shipping more than one item | No extra charge | |
| Pick-up available from Hamilton, Waikato | Free | |
Estimated delivery times in business days
Payment Options
Pay instantly by card, Ping balance or saved bank account.
Four fortnightly interest-free payments.
Questions & Answers
No questions have been asked!

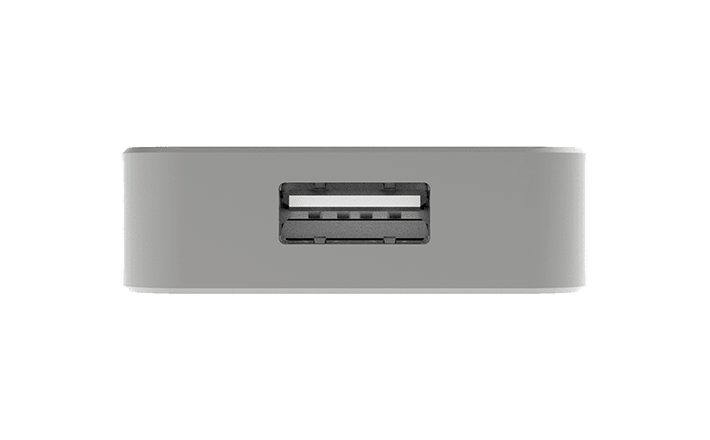

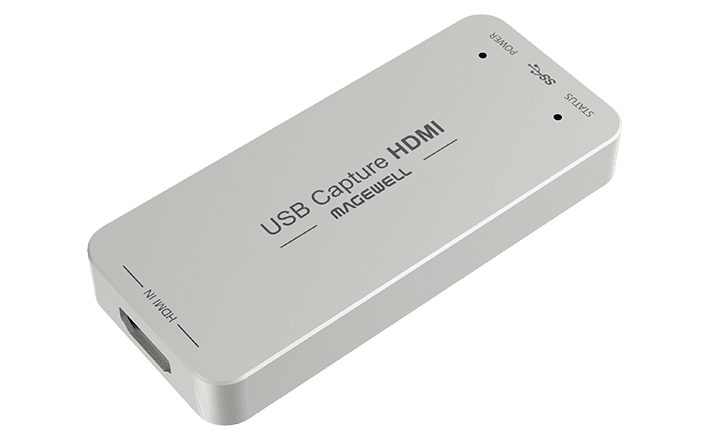

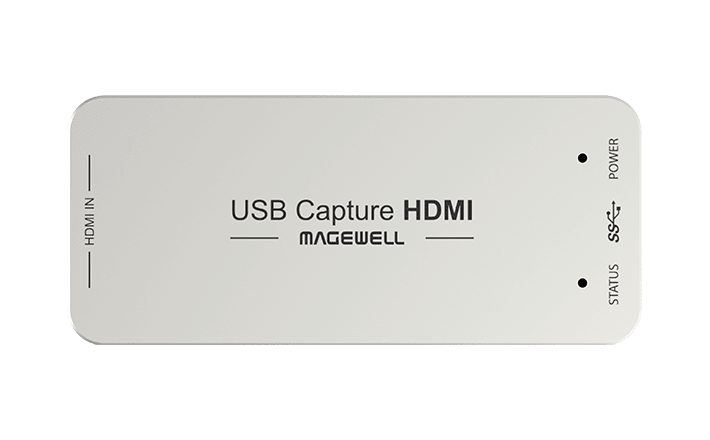

Magewell USB Capture HDMI Gen 2
