If you want to install pc arcade system to a crt arcade unit, this is what you need.

Convert any VGA signal such as PC or any VGA arcade video game PCB to CGA signal.

You can play any VGA games (high resolution arcade games or PC games) on you CGA CRT 15 Khz monitor, or display it on any PAL or NTSC TV set.

A +5v 1A jack power supply is required.

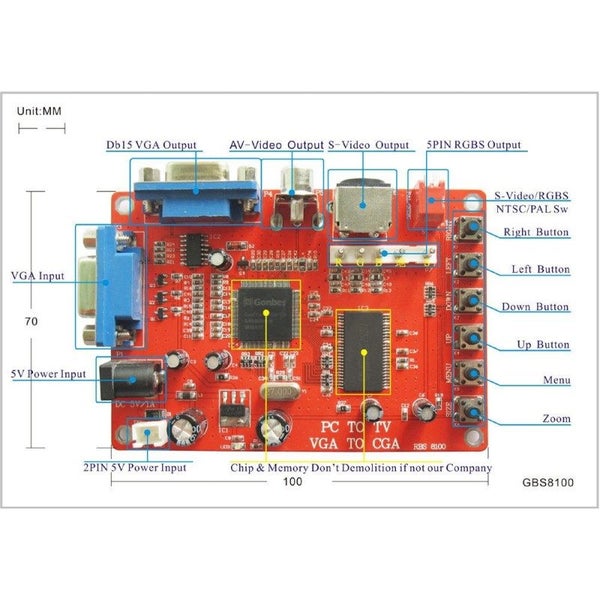

Features:

• Supports VGA/SVGA/XGA/SXGA (640x480, 800x600, 1024x768, 1280x1024) signal input
• Sipports VGA output by pass
• CGA signal output (15Khz)
• Video / S-Video output
• Support NTSC & PAL
• Position control and zoom control
• True 24 bits digital A/D converter for true 16.7 million color convertion
• English OSD menu
• Dimensions: 100x70x20 mm

Package content:

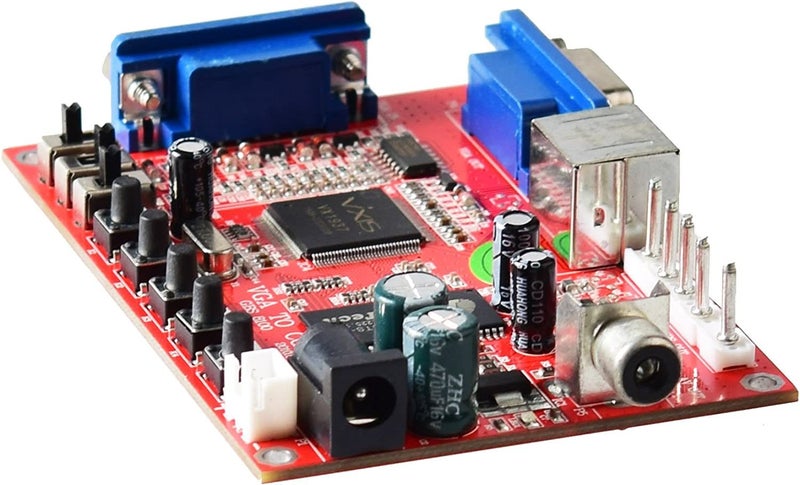

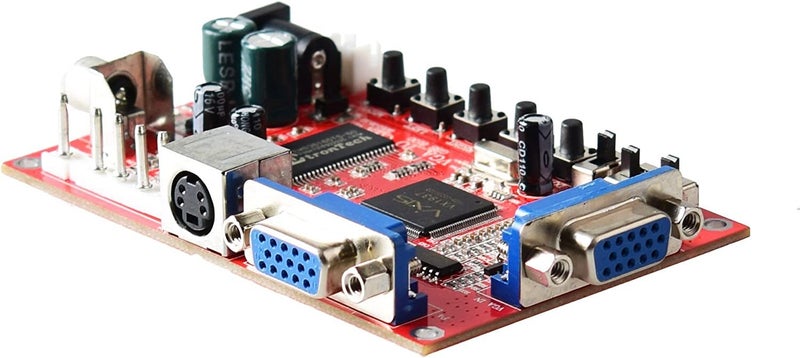

• Arcade HD converter PCB
• RGB cable

We do have a large range of the arcade machine product if you can't find what you need about your machine, please contact me.

How to find me

Please to go trademe mian home page, and search for " acrycade gear “, and select that. then it leads your to my trademe store page, And try to find contact icon from the upper-left side of the page, click that, then you can find my number.

Please also check the last two photos, then you should know how to find me.

Shipping all parts could be sent on the following day if your payment go through. Diy bartop, control panel, fighting stick would be finished with 48 hours.
