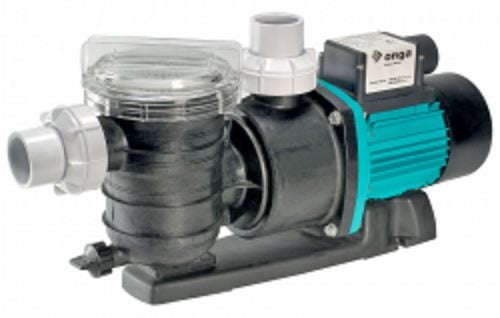

ONGA Leisuretime Series POOL PUMP 1hp 2 year warranty

The range of ONGA Leisuretime swimming pool pumps has been purposefully designed to provide maximum performance and corrosion resistance at a realistic cost.

Ideal for small to medium domestic swimming pools and solar pool heating. APPLICATIONS:

Swimming pools from 20,000 litres up to 90,000 litres. Solar heating circuits. Above ground pools. FEATURES & BENEFITS

IP55 (TEFC) motor – with IP55 protection from dust and water the LTP pumps are preserved Electrical approvals-the LTP series pool pumps have passed all stringent Australian standards AS/ NZS3136:2001 for safety and is approved for installation within the wetted zone of the pool area, approvals V99108, V02301, V02302. OPERATING CONDITIONS

Suitable for pumping clean non-aggressive liquids without solids or fibers in suspension.

Fluid Water Maximum working pressure 270 kPa Water (Swimming Pool) temp range 5ºC-35ºC Ambient temperature 50ºC maximum MOTOR Type TEFC 2 pole continuously rotated Nominal speed 2800 rpm IP rating IP55 Insulation class Class F Thermal overload Inbuilt auto reset Temperature rise Class B Frequency 50Hz Voltage 230º-240º Bearing type Deep groove ball bearing with double contact lip seal Bearing temperature rating 150ºC

Other sizes available
