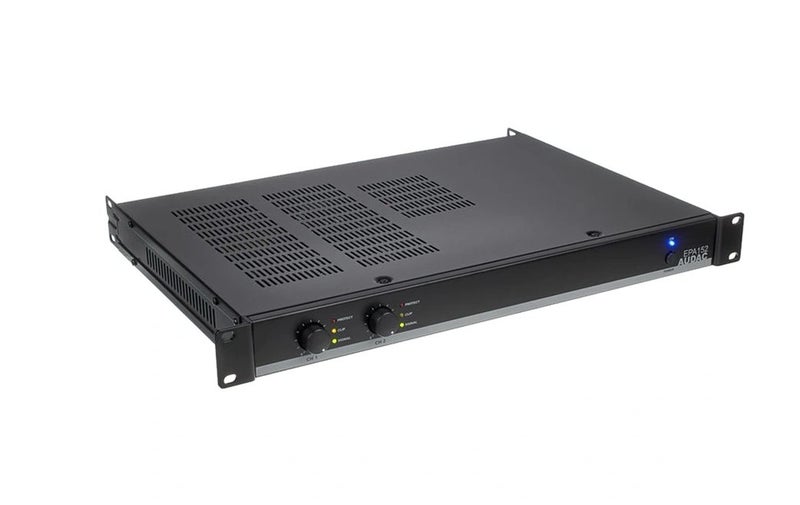

Audac EPA252 Dual-Channel Class-D Amplifier 2 X 250w

RRP $1199

Save $$$$$

This energy efficient Audac EPA252 Dual-Channel Class-D Amplifier 2 X 250w will automatically switch to a standby mode when no audio signals are detected (less than 1Watt power consumption in standby mode). Their weight and compact size makes these single rack space amplifiers ideal for both fixed and mobile installations. Their use of Class-D technology ensures excellent efficiency as well as outstanding sound quality.

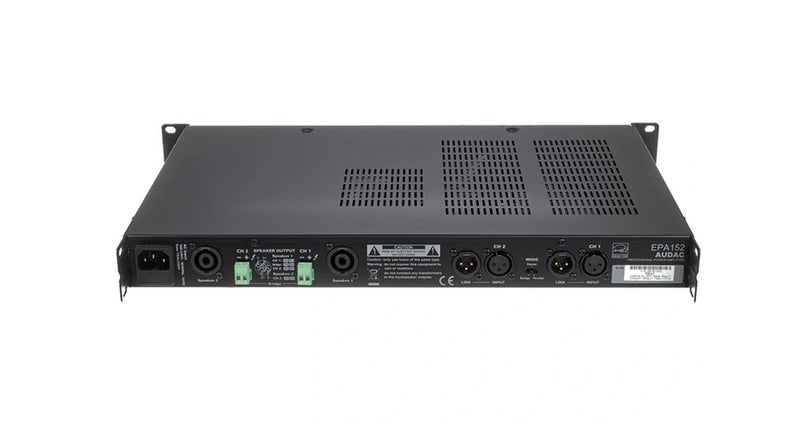

Thanks to the complete passively cooled entity only a minimal of maintenance is needed, while ensuring maximum reliability. Various specific functions and advanced circuitry guarantees an optimal protection against DC malfunctioning, short circuit, overheating and overload. Signal input connections are integrated with balanced XLR connectors, and signal link through is possible using the XLR output connectors. Outputs are connected using terminal block connectors.

Specifications SYSTEM SPECIFICATIONS Signal / Noise > 90 dB THD+N (@ 1 kHz) < 0.1% (1/2 Rated Power) Crosstalk (@ 1 kHz) > 70 dB Technology Class-D Protection DC Short circuit Over heating Over load Signal limiting Cooling Convection cooled Operating temperature 0° ~ 40° @ 95% Humidity Frequency Response (± 3 dB) 20 Hz - 20 kHz Power Supply Switching mode 100 ~ 240 V AC / 50 ~ 60 Hz Consumption 145 W Inputs Sensitivity (1W/1m) 0 dB (1V RMS) Impedance 12 kO balanced Connector XLR female with Male Linkthrough Outputs Connector Speakon compatible & 2-pin Euro Terminal Block (5.08 mm) Power Consumption Standby 0.8 Watt (30 min standby time) RMS Power @ 4 O Stereo 2 x 150 W @ 8 O Bridge 300 W @ 8 O Stereo 2 x 80 W PRODUCT FEATURES Dimensions 482 x 44 x 330 mm (W x H x D) Weight 4.100 kg Mounting 19” Unit height 1 HE Construction Steel Colours Black
