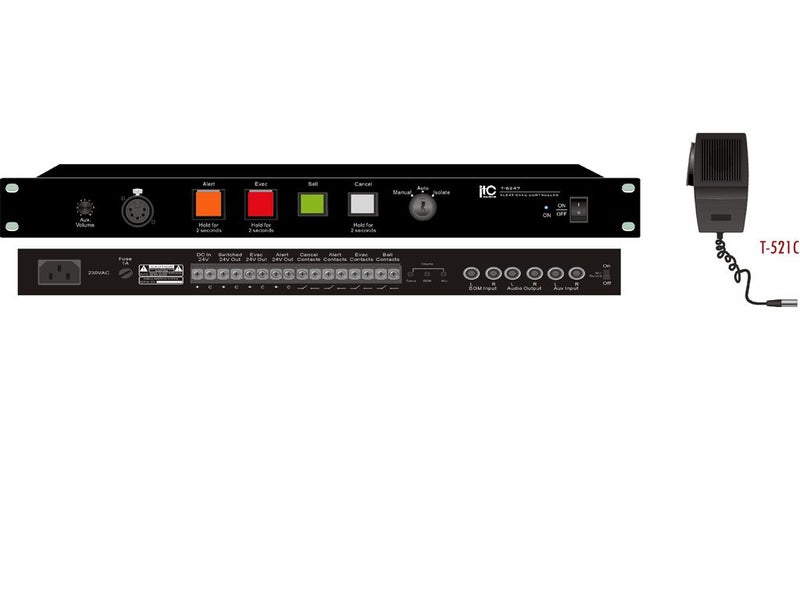

Evacuation Controller Emergency Alarm Panel (T-6247)

This easy to install controller features Auto, Manual, and Isolate modes, selectable via the key switch. When the Auto position is selected the panel will respond to any signal received from the buildings Fire Indicator Board(FIB) or fire alarm. This signal then activates the alert tone.

If after a pre-set time this condition has not been attended to, the panel will change to the evacuation mode. The emergency evacuation tone will continue to sound until the panel has been reset. In the manual position any of the functions may be initiated from the front panel controls. This also isolates the unit so that the alert, evacuation and bell tones will stop. Provisions have been made for Back Ground Music source to be played through the controller. Back Ground Music is automatically muted when any other function is operated.

A microphone input has been included on the front panel (a microphone can be supplied at additional cost).

The Voice Message can be simply recorded by setting the rear panel Mic Record switch to ON, and the message can be any length from 1 to 20 seconds. It also provides the 24V DC output to operate 24V amplifiers and control the override relays in our 100v volume controls (T652F not supplied).

Specifications Model T-6247 Evacuation Controller

Output Level: 0dBm (775mV) Distortion: 0.01% Frequency Response 100Hz~18KHz S/N Ratio: Aux / Music Input -90dB typically/ Alert / Evac / Chime -70dB typically/ Input Sensitivity MIC 5mV Balanced BGM / Aux Input 350mV Unbalanced Power Supply: ~230V/50Hz & DC 24V Power Consumption: 15W Weight: 2.5Kg Dimensions: 484x252x44mm

12 months warranty
