4 Band EQ HPF 48V Insert+Direct Out 2 x Matrix Talkback

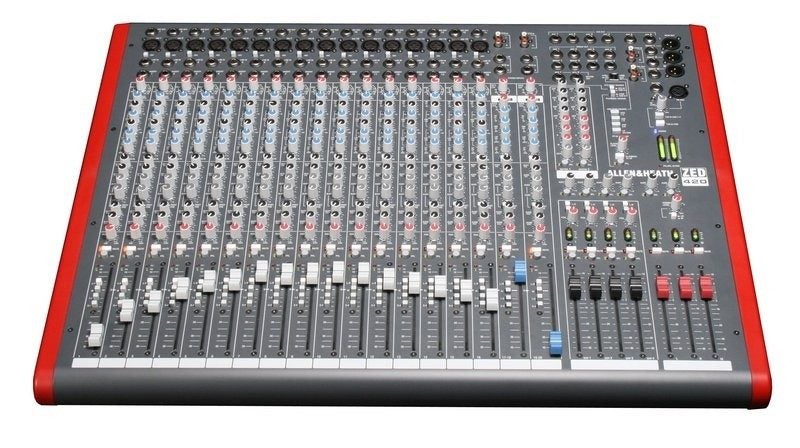

ZED-420 is excellent for bands, houses of worship, theatres or AV applications. It has a truly professional feature set, which will fit any sound reinforcement application and professional PA hire stock. ZED-420 has Configurable USB audio in/out makes it easy to capture stereo recordings, 16 mic or line inputs plus 2 dual stereo inputs, 4-band EQ with MusiQ, 4 sub-groups, 6 auxiliary sends and a 7×2 matrix.

• 16 mono channels
• 2 dual stereo inputs with 4-band EQ
• Neutrik mic XLR
• Neutrik 1/4 inch jacks
• Channel insert
• Super wide gain ‘DuoPre’ mic line input
• 4-band EQ with 2 swept mids and in/out switch
• Illuminated mute
• Sound image pan
• Illuminated PFL & peak warning indicator
• ALPS 100mm faders
• 6 auxiliary sends (2 pre, 2 post, 2 pre/post)
• 4 sub groups fed from each channel
• All inputs with level control
• 12 bar meters
• L, R and M main mix outputs
• 2 matrix sections available; can send output to USB
• Individual channel 48V phantom power
• Direct output on every mono channel
• Peak and signal indication on every channel
• Configurable USB stereo audio in/out
• Master level c
