Summary

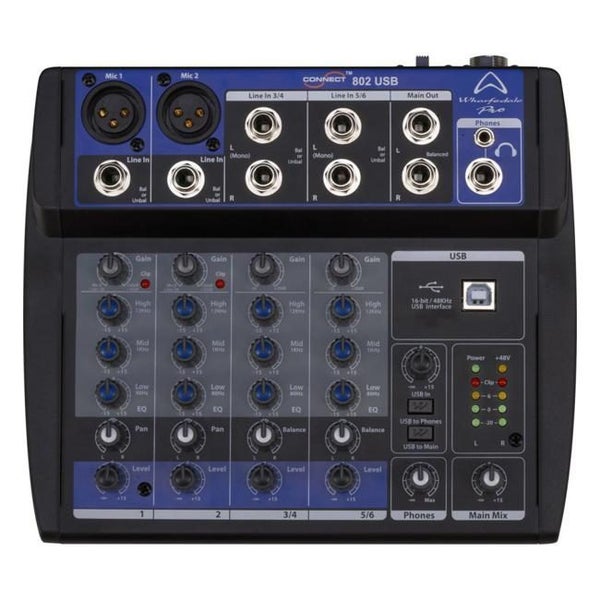

The Wharfedale Connect 802 Mini Mixer USB is a high-quality micro-mixer suitable for live sound, home studio recording, and fixed installations. It features professional mixer functions such as phantom-powered, balanced XLR microphone inputs, and uses the same high-quality microphone pre-amplifiers as the SL Series Mixers. The mixer offers an intuitive, ergonomic user interface ideal for both beginners and professionals, with comprehensive connectivity for versatile use.

Features

• Switchable Global +48V Phantom Power
• Clip LEDs on Mic/Line Channels
• 2 Balanced XLR Mic Inputs
• Pan/Balance Controls on All Channels
• 2 Stereo Channels with Balanced/Unbalanced 1/4" TRS Jacks
• Separate Main Mix and Phones Outputs with Level Controls
• Stereo 4 Segment LED Meters
• Stereo 1/8" and 1/4" Headphone Outputs

Specifications

• Hum and Noise: -127dB Mic Pre Equivalent Input Noise / -95dBu Residual Noise
• Maximum Input Level: Mic In +10dBu, Line In +20dBu, 2TK In +20dBu
• Maximum Output Level: +22dBu
• Mono Input Channel Gain: 50dB Variable (-50 - 0dB) / (-40dB - +10dB)
• Level Meters: Dual 4-Segment LED
• Clip Indicator: Turns on at approx +16dBu
• Frequency Response: 20Hz-20kHz 1dB
• Weight: 1.88kg / 4.14lbs
• Maximum Headphone Output Level: >150mw @ 32 ohms
• Input Channel EQ: High (15dB) 12KHz Shelving, Mid (15dB) 1KHz Shelving, Low (15dB) 80Hz Shelving
• AC Power: 100-120V; 220-240V, 50/60Hz
• THD: <0.0025% @ +14dBu
• Dimensions (H x W x D): 311mm x 77mm x 226mm (12.24" x 3.03" x 8.90")

Notes

The Connect 802 mixer is compact and cost-effective, designed to fit into any audio setup. It provides professional sound quality and functionality in a small form factor, making it suitable for various audio mixing needs.
