of 30° vertical dispersion pattern

For applications that typically require a throw between 15-30m, a full blown line array is not always practical, optimal or affordable. Conversely, a point source solution may not be sufficient in coverage and SPL. TORUS is a constant curvature array, designed to fill that gap perfectly, combining optimised coverage, SPL and cost efficiency

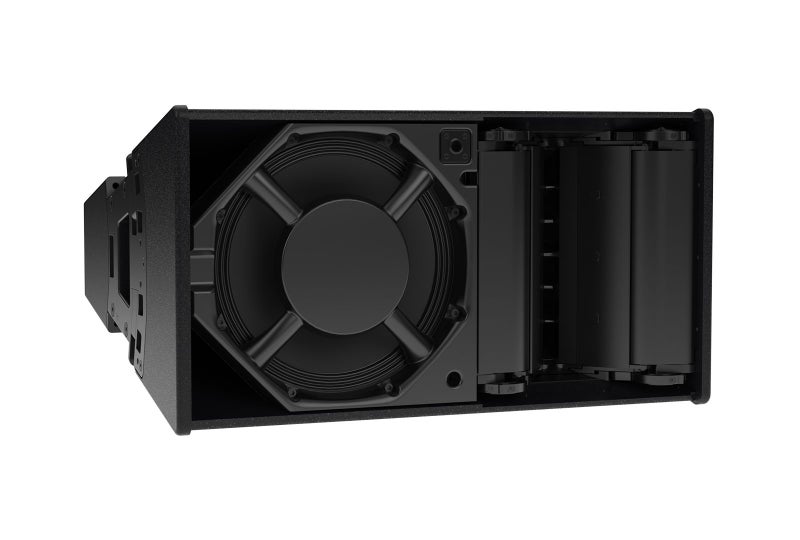

T1230 offers a vertical pattern of 30° with a flexible horizontal pattern that can be manually adjusted between 90°, 60° or 75° (Asymmetrical) via the Dynamic Horn Flare™

Features

1 x 12” (300mm), & 3 x 1.4” (35mm) HF drivers Passive fixed angle array cabinet of 30° vertical dispersion pattern Manually adjustable Dynamic Horn Flare™ (between 60°, 90° or 75° Asymmetrical) for flexible horizontal pattern Phase plug for increased mid band sensitivity Optimised coverage via DISPLAY 3 and powered by iKON amplifiers Plug and play system, quick set-up and easy rigging

Applications

Optimised for short to medium throw live sound and installation applications Fills, distributed systems, and centre clusters

Specifications

TYPE Passive 2-way Constant Curvature 30° enclosure FREQUENCY RESPONSE (WITH IKON SETTINGS) ± 3dB @ 65Hz,

• 10dB @ 50Hz DRIVERS LF: 12”,
