Description

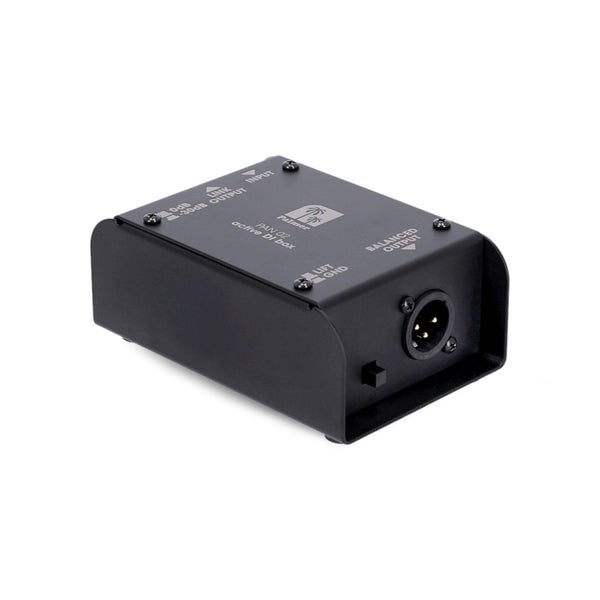

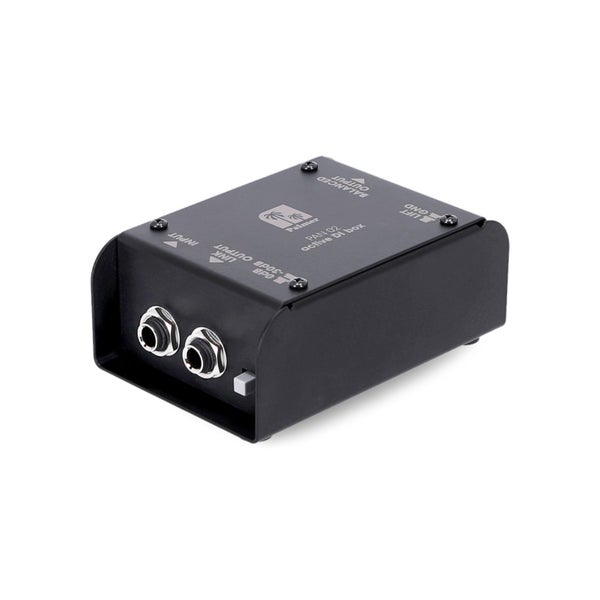

The Palmer PAN 02 Active DI Box is a single-channel device that can be powered by either a 9 V battery or 48 V phantom power. With a high-impedance input, this DI box offers a higher output level compared to a passive DI box. The active circuitry provides a high input impedance of 1 megohm and increased input sensitivity with a typical difference of -4 dB between input and output. The maximum output impedance with phantom power operation is +10 dB, and the output is transformer balanced. The unique "floating ground" circuitry allows for ground lift even during phantom power operation. Housed in a sturdy metal case measuring 110 x 73 x 42 mm, the Palmer PAN 02 Active DI Box is a reliable and versatile tool for audio professionals. It features a single channel, 6.3 mm jack input connectors, and a maximum input level of +45 dBu. Additionally, it has controls for attenuator and ground lift, making it easy to adjust for various sound requirements. With its compact design and high-quality construction, this DI box is ideal for live performances, studio recording, and other audio applications. General Product type DI boxes Type active Channels 1 Inputs 1 Input connectors 6.3 mm jack Max. input level + 45 dBu Input impedance (@ 60 Hz) 1 M Ohm(s) Input pad 0 / -30 dB Number of outputs 1 THRU outputs/channel 1 Output connectors 6.3 mm jack, XLR Max. output level + 10 dBu Output impedance 600 Ohm(s) Frequency response 10 - 20000 Transformer balanced Yes Ratio 1 : 1 Controls attenuator, ground lift Power supply +48 V phantom power, 9 V block Power consumption 3.8 mA (9V), 4 mA (48V) Cabinet material sheet steel Cabinet surface Powder coated Width 110 mm Depth 73 mm Height 42 mm Weight 0,353 kg
Details
