Transformer

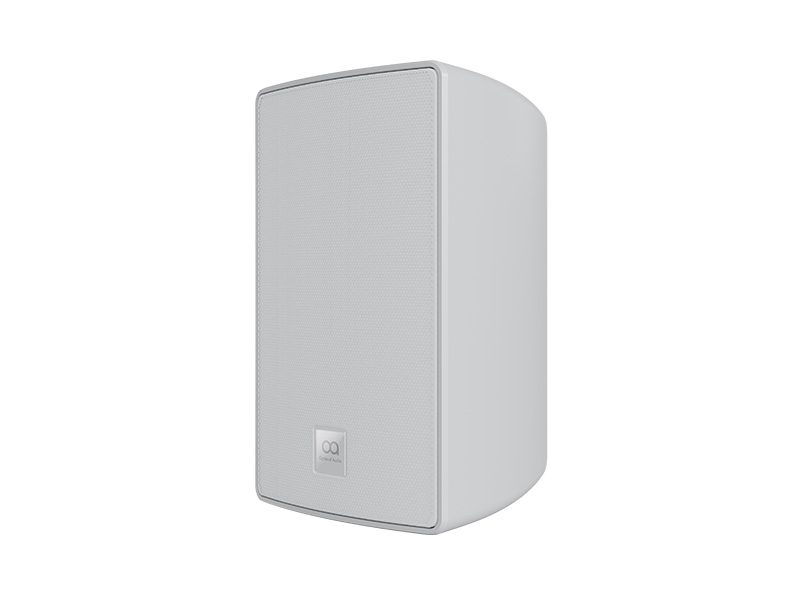

Cuboid 5 is a full range, two way, passive 5” loudspeaker designed to give exceptional sound quality in a very small form factor, for distributed applications with high quality background music and speech reproduction. With its attractive design and included mounting hardware, Cuboid 5 can be fixed in either portrait or landscape orientation for simple and flexible installation. A weatherproof terminal cover is available for outdoor use, bringing the rating to IP54 Cuboid features a 5.25” low frequency driver and a 0.75” silk dome high frequency driver mated to a shallow wave guide for consistent HF distribution. When coupled with the Zone series, a ZonePad and the WebApp makes setting up a system and end user control simple and intuitive

FEATURES

• Discreet size, high performance
• Portrait or landscape mounting options
• Wall bracket included
• Max SPL 105dB (continuous) 111dB (peak)
• 130° horizontal x 120° vertical coverage
• IP54 for outdoor use with accessory terminal cover

SPECIFICATIONS TYPE Two way, full range, passive 5” loudspeaker FREQUENCY RESPONSE 97Hz - 20kHz +/-3dB, -10dB @ 80Hz (when used with preset) DRIVERS LF: 5.25”(133mm) coated paper, ferrite motor system HF: 0.75” (19mm) Silk Dome, neo
