300W AES, 1200W peak

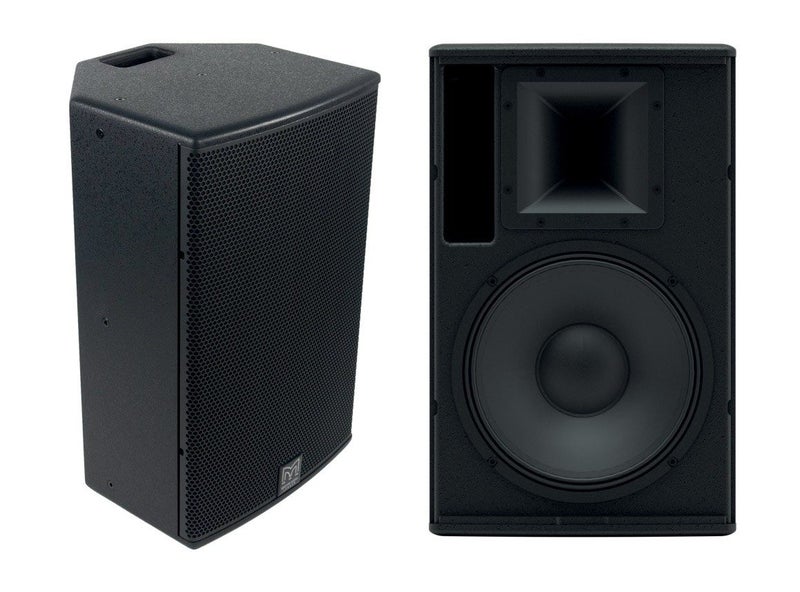

The X12 fulfils the requirement for a compact system that can deliver high sound levels, either as a stand alone system or supplemented by a BlacklineX subwoofer. Featuring a 12” (300mm) LF driver unit and a 1” (25mm) exit compression driver on a user rotatable horn, its 80° x 50° dispersion pattern is ideal for medium throw applications.

The LF driver has a 2.5” (63mm) voice coil and a high BL motor, while the HF compression driver utilises a 1.75” (44mm) polyimide diaphragm for extended high frequency response. Use with a BlacklineX Series subwoofer will enable the X12 to operate as a dancefloor or sound reinforcement system that is remarkably powerful for its size, as well as being extremely portable.

The X12 is constructed from plywood and fitted with a screw free steel grille, M8 inserts for wall brackets and eyebolt suspension, plus a pole mount socket with a removable bung that maintains clean lines in install applications. https://martin-audio.com/downloads/datasheets/X12datasheet. pdf

A full range passive two way system, the X12 may be used without a controller. However, the EQ and limiter functions of a controller such as the Martin Audio DX0.4 will maximise its capabilities. When used in conjunction with an X115, X118
