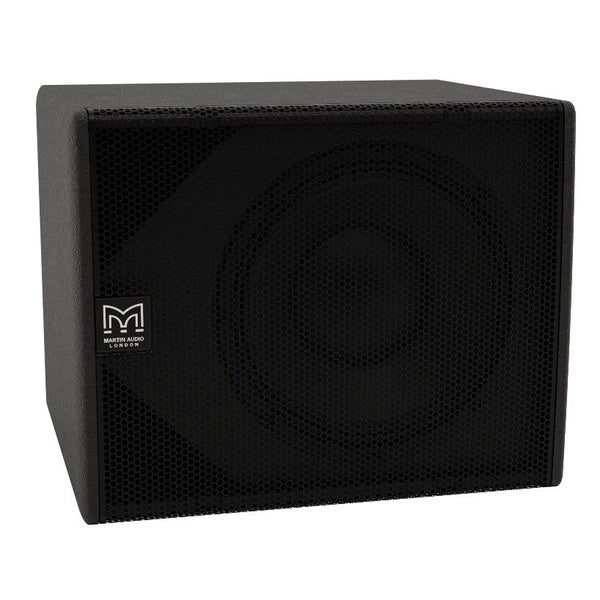

The SX112 is an ultra compact direct radiating sub bass system designed to extend the bandwidth and increase the headroom of full range loudspeaker models. It features a very efficient 12" (300mm) long throw bass driver with a high power 3" (75mm) voice coil and generously sized reflex ports for low noise, high power operation.

Features Ultra-Compact, single driver, direct radiating subwoofer 12” (300mm) driver with 3” (75mm) voice coil Water resistant cone Large ports for reduced air noise Perforated steel grille Black or white standard colour options Integrated flying points

Specifications TYPE Compact, single driver, direct radiating subwoofer FREQUENCY RESPONSE 48Hz-150Hz ± 3dB -10dB @ 35Hz DRIVER 12” (300mm)/3” (75mm) voice coil, long excursion, ferrite magnet, waterproof cone RATED POWER 400W AES, 1600W peak SENSITIVITY 100dB MAXIMUM SPL 126dB continuous, 132dB peak (half space) NOMINAL IMPEDANCE 8O DISPERSION (-6DB) Omnidirectional CROSSOVER 80-120Hz active ENCLOSURE 52 litre, Plywood FINISH Black or white textured paint GRILLE Black or white perforated steel CONNECTORS 2 x NL4 PIN CONNECTIONS Left to right: Input+, Input -, Link -, Link+ FITTINGS 12 x M10 inserts DIMENSIONS (W) 487mm x (H) 390mm x (D) 410mm WEIGHT 21.5kg
