Description
Cardioid dispersion pattern

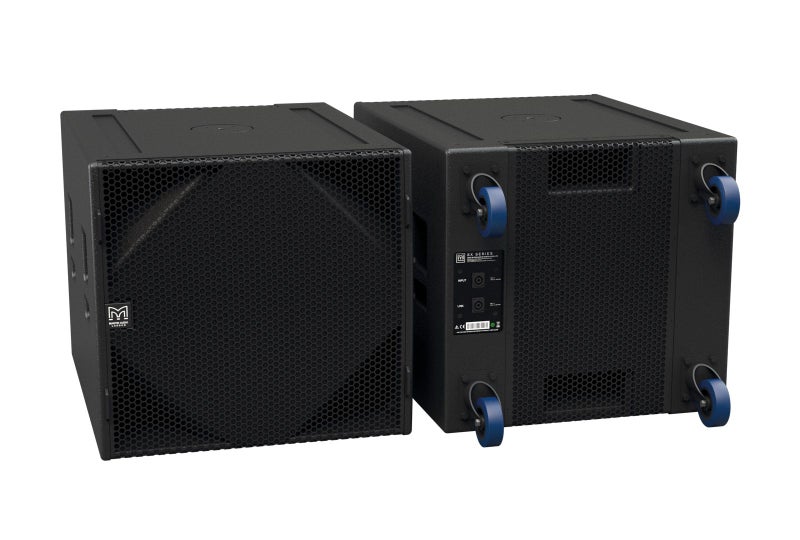

Designed for touring sound and installations, the SXC118 is a compact, high performance cardioid subwoofer. It features an 18” (460mm) forward facing driver and a 14” (356mm) rear facing driver, each driven independently by separate amplifier channels and DSP.
Features Compact, cardioid subwoofer Front facing 18” (460mm)/4” (100mm) voice coil driver Rear facing 14” (356mm)/3.5” (88mm) voice coil driver Cardioid dispersion pattern 28dB rear rejection at 75Hz High output capability Tour grade plywood enclosure with flying inserts
Compact, cardioid subwoofer FREQUENCY RESPONSE 43Hz – 150Hz ±3dB, -10dB @ 34Hz DRIVERS 18” (460mm)/4” (100mm) voice coil, long excursion, ferrite magnet, waterproof cone 14” (356mm)/3.5” (88mm) voice coil, long excursion, neodymium magnet, waterproof cone RATED POWER 18”: 1000W AES, 4000W peak 14”: 800W AES, 3200W peak
SENSITIVITY 104dB MAXIMUM SPL 140dB peak NOMINAL IMPEDANCE 18”: 8Ohm 14”: 8Ohm
DISPERSION (-6DB) Cardioid ENCLOSURE Multi-laminate birch and poplar ply FINISH Textured black paint GRILLE Black HEX perforated steel CONNECTORS 2 x NL4 PIN CONNECTIONS (INPUT) 18”: +1, -1; 14”: +2, -2 PINS CONNECTIONS (LINK) 18”: +1, -1; 14”: +2, -2
FITTINGS Two skids on base,
