Description
20Hz-18kHz 2-4 grams Tracking Force

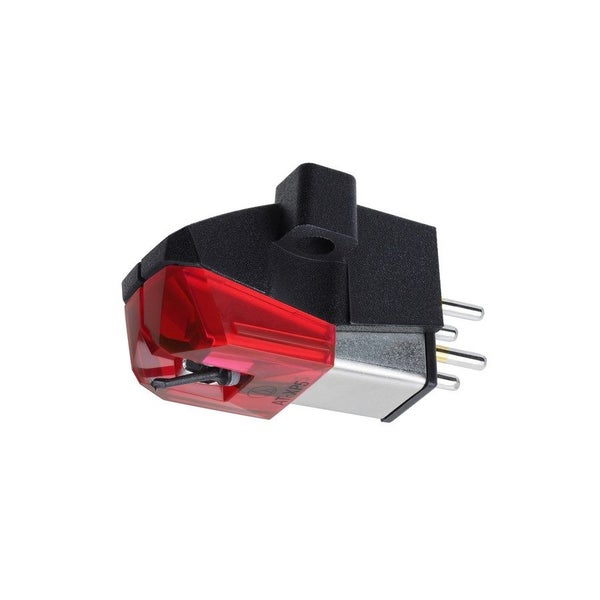

The AT-XP5 is specially designed for the needs of DJs. This cartridge features a highly-rigid polyphenylene sulfide (PPS)/glass fiber body . It also offers a powerful output level of 5.5 mV, and its 0.3 x 0.7 mil elliptical bonded stylus tracks the record groove with high accuracy for outstanding audio reproduction. Plus, the cartridge is specifically designed to provide maximum visibility of the stylus tip.
Highly-rigid polyphenylene sulfide (PPS)/glass fiber body Durable carbon fiber-reinforced ABS cantilever and nylon wire suspension ensure precise tracking Design offers maximum visibility of the stylus tip Great tracking and channel separation for high-fidelity sound
Frequency Response 20-18,000 Hz Channel Separation 20 (dB at 1 kHz) Vertical Tracking Force 2.0-4.0 g (3.0 g standard) Stylus Construction Bonded round shank Recommended Load Impedance 47,000 ohms Channel Balance 2.0 dB (1 kHz) Mount Half-inch Replacement Stylus ATN-XP5 Screws and screwdriver inc
Coil impedance: 6.7 k ohms (1 kHz) DC resistance: 990 ohms Recommended load capacitance: 100 to 200 pF Coil inductance: 1.0 H (1 kHz) Vertical tracking angle: 20° Dimensions: 17.2 mm H × 17.8 mm W × 28.3 mm D Weight: 6.2 g
