RAM-B-121-A-202U RAM(R) Double Ball Yoke Clamp Mount with Round Plate - Short Arm

Features

• The RAM Yoke Clamp will hold firm to most glare shields, yokes, or tubing, or even exercise equipment 16-32mm in diameter
• Includes short RAM(R) B size double socket arm which provides for almost infinite adjustment and perfect viewing angles
• Round plate incorporates AMPs hole pattern and will match to most RAM cradles
• Manufactured from Powder Coated Marine Grade Aluminium for maximum longevity
• Backed by a lifetime warranty

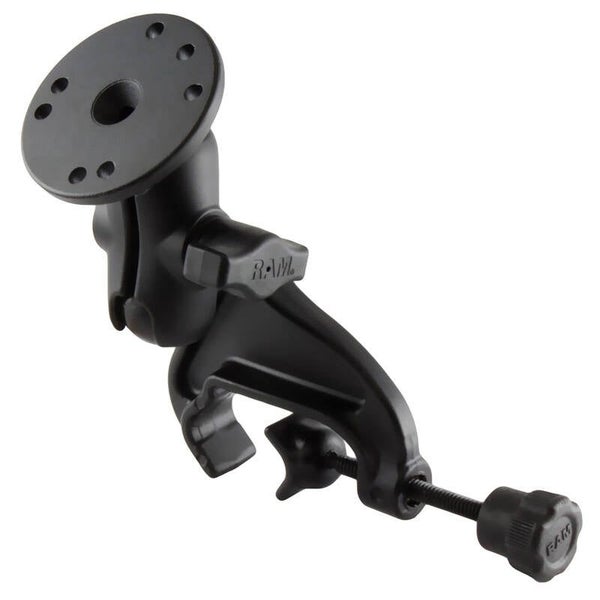

This mounting system - designed primarily for aircraft use consists of a yoke clamp base, SHORT double socket arm and round 63mm base that contains the universal AMPs hole pattern.

The yoke clamp base will fit rails in diameter from 13mm to a maximum of 31mm. The 1" (B Series) rubber ball is at a right angle to the plane of the mount; when connected to a rail, the ball sits parallel to the rail. The mount is designed with a RAM 1" diameter patented rubber ball and socket system that has adjustment points at both ends of the double socket arm, allowing for almost infinite adjustment and perfect viewing angles.

Specifications/Features

Clamp Base Accommodates rails: 16 to 31mm in diameter (.625" to 1.25")

Arm Dimensions: Overall Length: 60.5mm (2.38") Socket-To-Socket Length: 51mm (2")

Hole Patterns (Round Base Plate) 4-Hole AMPS: 1.181" x 1.496" 3-Hole 120-Degree: 1.812" Diameter

Material: Powder Coated Marine Grade Aluminium

Ball Size: 1" Rubber "B" Ball Size

Weight Capacity Standard Use: 907 grams (2 lbs) Heavy-Duty Use: 454 grams (1 lb)

Weight

308 grams / 0.68 lbs

Component Parts: RAM-B-121U - Yoke Clamp RAM-B-201U-A - Short Double socket arm RAM-B-202U - Round Base - 63 cm (2.5") diameter
