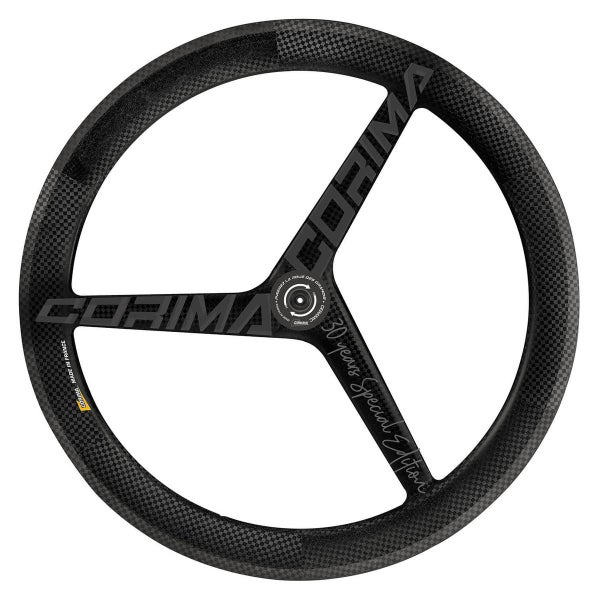

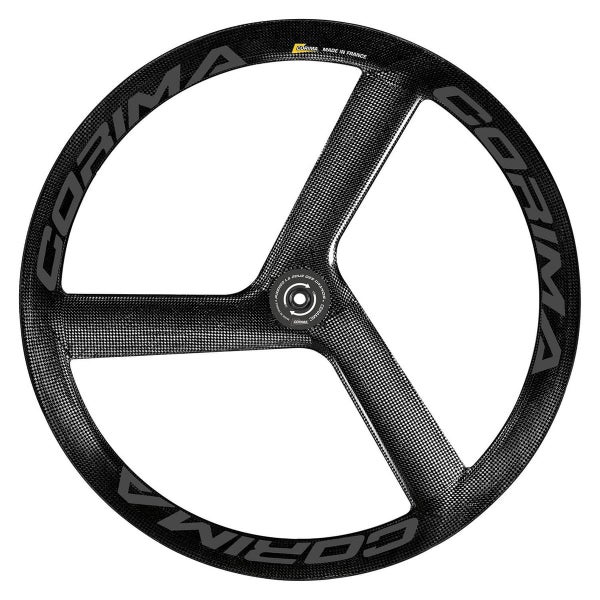

The ultimate performance 3-spoke wheel for time trial and triathlon. Description The WS TT range is designed for cyclists looking for absolute performance. The WS TT 3-spoke wheel is the ideal front wheel to perform on time trial and triathlon courses. Developed in a wind tunnel in collaboration with Astana, it embodies all the experience and know-how of CORIMA in high performance. Each CORIMA front wheel in rim-brake is delivered with a pair of CORIMA brake pads compatible with standard Shimano(R) / Sram(R) brake pad holders. Please note that if you have Shimano(R) Direct Mount or Campagnolo(R) brake shoes, you must order the appropriate CORIMA brake pad holders. Specifications Data 28" clincher front

Profile: 58MM

Rim width: 26mm

Axle: Quick release 100mm

Model: HM

Weight: 1005 g

Carbon weave: Satin mat 3K Integrated magnet Shipped with

• Pair of brake pads
• Rim tape
• Protection wheelbag
• Valve extender
• Quick release skewer

Tire air pressure Refer to the table below for the tire pressures in relation to the section marked on the tyre. Tire section (mm) Max. pressure (bar) Max. pressure (psi) 23 7,8 113 24 7,5 109 25 7,3 106 26 7,0 102 27 6,8 99 28 6,6 95 29 6,3 92 31 6,1 88 31 5,8 85 32 5,6 81

• Do not remove the tire with any metal tool.
• The minimum tire section is 23 mm and the maximum 32 mm.
• For comfort and performance we recommend fitting 23 mm section tires on our 22.6 mm wide rims and 25 mm section tires on our 26 mm wide rims.
• The original CORIMA braided rim tape is mandatory. If it is damaged it must be the replaced.
• CORIMA clincher wheels are not compatible with tubeless conversion kits.
• Only tires with inner tubes are acceptable (except latex inner tubes).
• Co2 cartridge inflation systems are only allowed if their flow rate is adjustable. Instant inflation cartridges are prohibited with CORIMA wheels.
• **If the tire manufacturer indicates a pressure lower than that in the table, use this lower value....
