AUTOOL BT280 Electric System Circuit Tester Power Probe Tester Diagnostic Tool

Electric System Tester is the newest generation intelligent Electrical System Circuit Tester with 2.4-inch large-size LCD screen display. It is dedicated to testing all 9V-30V vehicle electrical systems. It is Convenient, Fast, and Intelligent!

Multimeter Mode Covered with comprehensive parameters of Multmeter,it can quickly test the DC voltage, resistance, diode ,current, & frequency in the circuit system.

Oscilloscope Mode Be able to display the parameter curve diagram of the tested component, such as voltage, frequency, time, etc.

Component Activation It can generate"Activation"signals for components such as light, motors, & other on-board electronic devices.

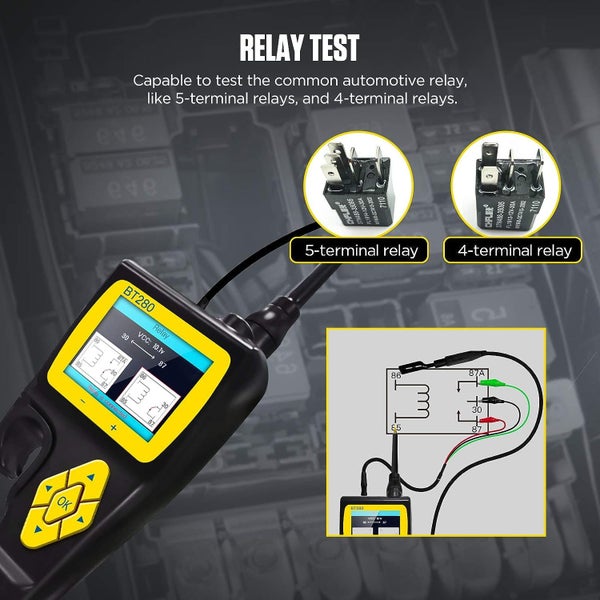

Relay Test Capable to test the common automotive relay, Like 5-terminal relays, & 4-terminal relays.

0-5V Power Supply Capable of setting 0-5V output voltage, used to verify the wiring condition of the tested component.

Injector Test It can output different pulse signals to the injector,and provides 4 pulse modes to better detect the condition of the injector.

Specifications and Parameters

LCD: (320*240 DPI) TFT color display Working temperature: 0-60°C (32-140 F°) Storage temperature: 40-70°C (-40-185 F°) External power supply: 12V or 24V Powered by battery Minimum working voltage: 9V Maximum working voltage: 30V Maximum measuring voltage: 150V Minimum measuring voltage: 0.1V Resistance measurement range: 1 ohm200K ohm Current measuring range: 018A Maximum continuous current: 18A

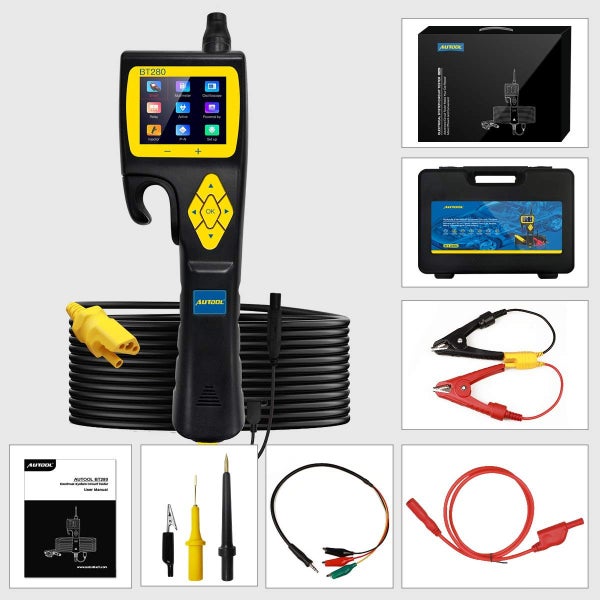

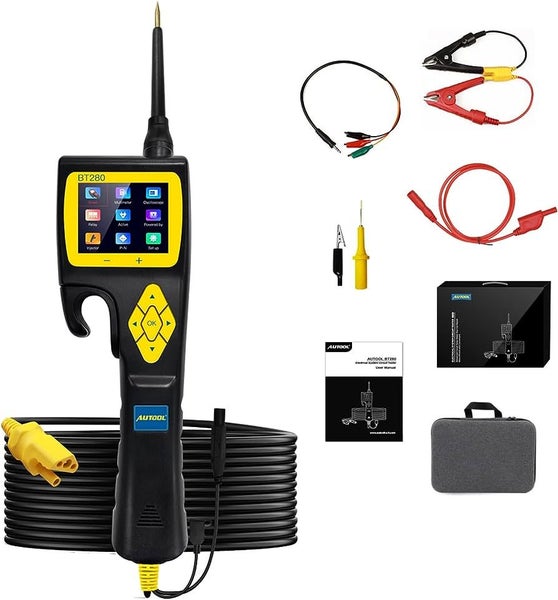

Package List 1pc* Electric System Tester main unit 1pc* Solid copper test probe tip 1pc* Extension connection line 1pc* Battery clamp 1pc* Relay test line 1pc* Probe adapter 1pc* 25Amp fuse 1pc* User manual
