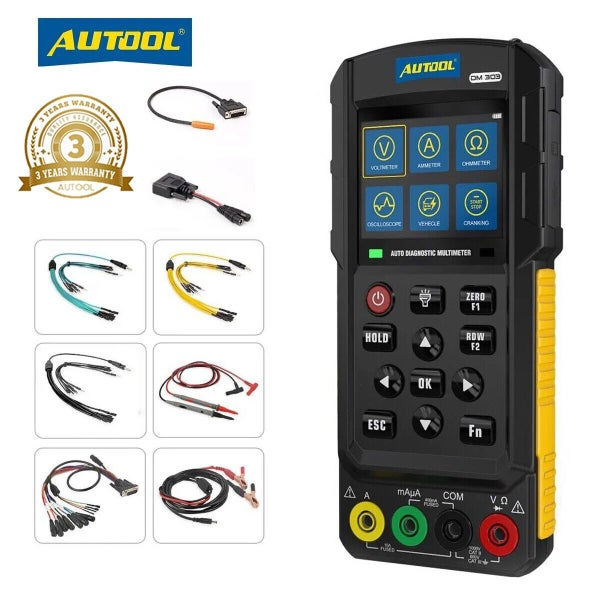

AUTOOL DM303 Digital Multimeter, Oscilloscope, K/Can, Relay, Ignition, Injector

AUTOOL DM303 Auto Diagnostic Multimeter Car Circuit Tester with K/CAN/Oscilloscope/Cranking/Analog Signal/Injector Test

12 TEST FUCTION

DC/AC Voltage Measurement, DC/AC Current Measurement, Resistance Measurement, Frequency Measurement, Diode Test, Oscilloscope Test, Automotive Circuit Test, Cranking Test, Injector Test, Relay Test, Analog Signal Test, Ignition Signal Test, K/CAN Line Data.

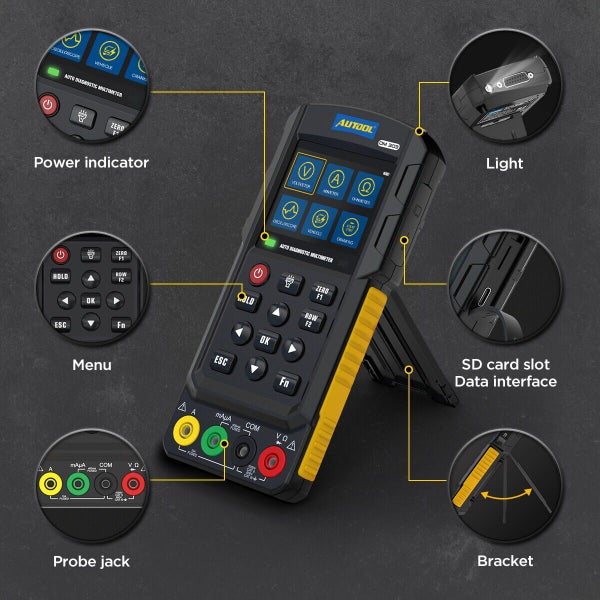

INTERFACE DISPLAY

Oscilloscope mode is a complete itelligent measurement system,which includes signal input, data sampling, data processing and automatic search, with the waveform test bandwidth of 500KHZ. With a variable sampling frequency, the slowly varying signal amount can be measured. It is applicable to measuring and observing various signals on the automobile circuit during the car overhaul, including the motor drive signal and motor power voltage of new energy vehicle, fuel car engine ignition pulse signal, camshaft signal, crankshaft signal, wheel speed sensor signal, oxygen sensor signal and so on.

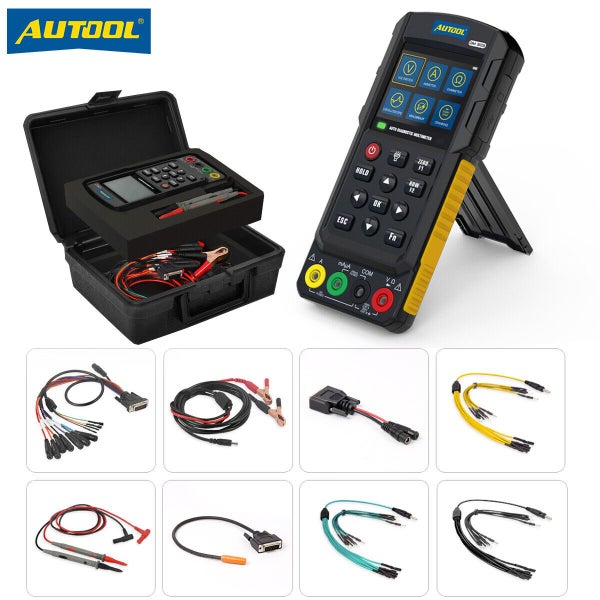

Multi-functional detection line

C01 - 1 DC connector, connected to the battery clip line C01 - 2 Terminals for injector test and Automobile relay test C01 - K K line signal line C01 - CAN+ CAN+ signal line C01 - CAN- CAN- signal line C01 - GND Ground wire C01 - SIN Sine wave signal line C01 - S1 5V signal line C01 - S2 Square signal line C02 - Battery clip line C03 - Ignition pulse signal detection line C04 - 1 DC connector, connected to the battery clip line C04 - 2 Probe terminal C05 - Jumper(Black) C06 - Jumper(Green) C07 - Jumper(Yellow)
