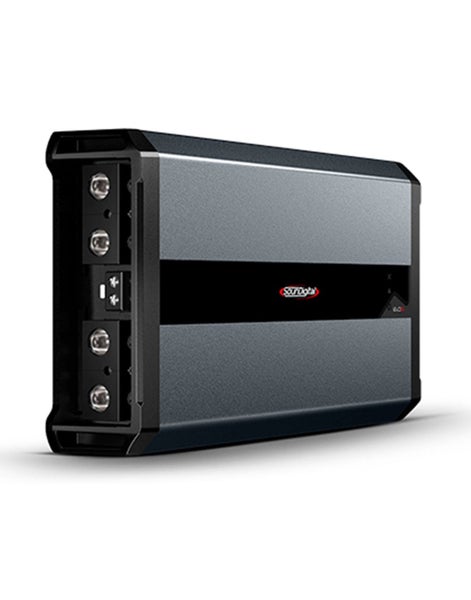

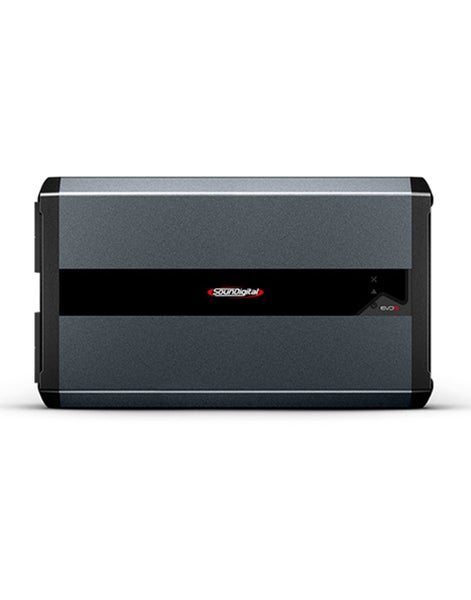

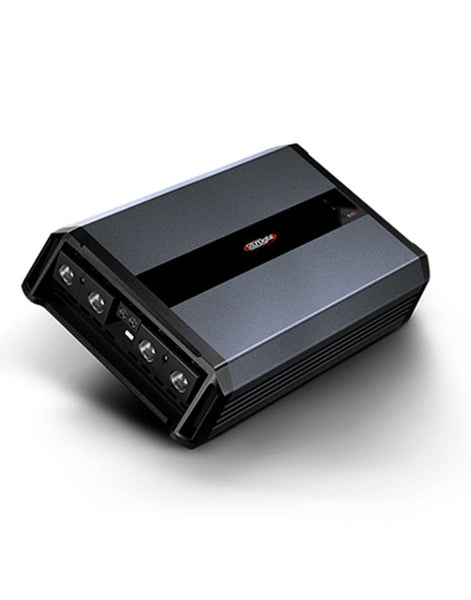

SounDigital EVO5 8000RMS Mono Amplifier With Universal Bass Controller
Description
NZ Stock | NZ Warranty | Express Shipping | GST Invoices | Bulk Discounts | Click & Collect at TechCrazy.
SounDigital EVO5 8000RMS Mono Amplifier With Universal Bass ControllerThe SounDigital EVO5 8000RMS Mono Amplifier with Universal Bass Controller delivers unmatched power and precision for high-performance car audio systems. With an incredible output of 8000 watts RMS at 1 ohm, this amplifier is perfect for bass enthusiasts and professionals looking to enhance their sound system. Key Features:
Power Output: 8000 watts RMS at 1 ohm, 5360 watts RMS at 2 ohms, 3844 watts RMS at 4 ohms.
Frequency Response: 8Hz ~ 20kHz, covering deep bass to high-frequency audio.
Subsonic Filter: 8Hz ~ 80Hz (12dB/oct) for clean, distortion-free bass.
Low-Pass Filter: 50Hz ~ 20kHz (12dB/oct) for precise tonal control.
Bass Boost: 0dB ~ 12dB @ 50Hz to enhance low-end frequencies.
Signal-to-Noise Ratio (SNR): 92dB @ 1 ohm, 85dB @ 2 ohms for cleaner, high-quality audio.
Input Sensitivity: RCA (0.2V ~ 2V) and High-Level Input (1.3V ~ 15V) for versatility.
Specifications:
Operating Voltage: 9V ~ 16V
Current Draw (Music): 381A
Current Draw (Max.): 762A
Total Efficiency: 80%
Damping Factor (@100Hz nominal impedance): 2000
Power Cable: 70mm2 (00 AWG)
Speaker Cable: 2 x 10mm2 (7 AWG)
Recommended Fuse (Music): 2 x 200A
Recommended Battery (Minimum): 2 x 220Ah
Note: Manufacturers warranty is void if damaged due to failure in installation or power surge. Professional installation is required. For warranty, invoice/certificate from installer is mandatory.
