Description

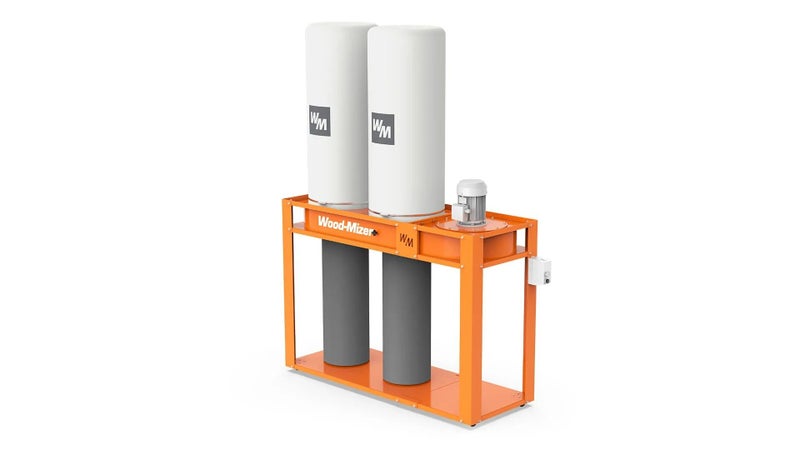

MES403 is a popular sawdust extraction kit with a base measuring 1760 mm x 645 mm, equipped with a set of transport wheels, making the device fully mobile. The extraction is powered by an MD400 fan with a 3 kW motor.
The MD400 fan has a switch that operates independently of the machine. It is directly connected to the cyclone without the use of a hose, saving space. The cyclone comes standard with two filter bags and two plastic bags for collecting chips and sawdust, each with a capacity of 120 liters. The cyclone features a special quick-mount system for the bags, making installation and removal efficient and fast. Sawdust extraction hoses are not included in the kit but can be ordered separately in lengths depending on the needs and placement of the equipment.
The minimum length required for each of the hoses to connect to Woodworking series machines is 3 meters.

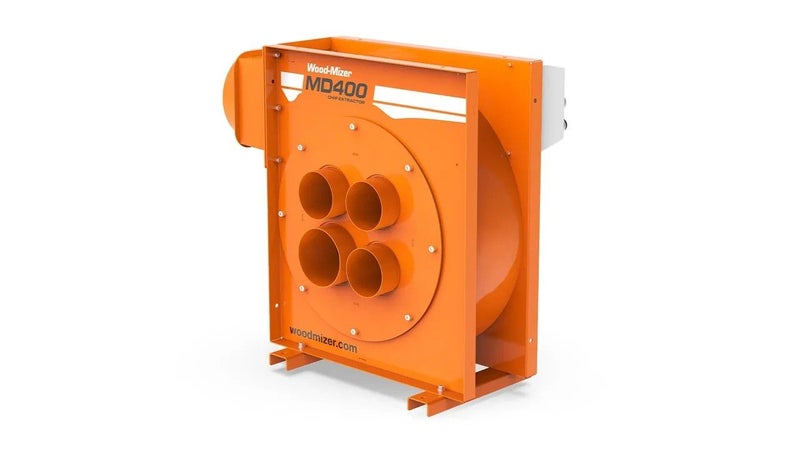

Through the input adapter provided with the MD400 fan, it's possible to simultaneously connect three hoses with a diameter of 100 mm and one hose with a diameter of 125 mm. Unused inlet openings are covered with special plugs. Hose clamps for securing the hoses and plugs for the inlet openings of the fan are standard components included in the MES403 system.
*Pricing Includes GST, excludes in country freight if required. *Price Valid as stock lasts
Details
Shipping & pick-up options
| Destination & description | Price | |
|---|---|---|
| To be arranged | N/A | |
| Pick-up available from Tauranga, Bay of Plenty | Free | |
Payment Options
Pay instantly by card and Ping balance.
Cash
Questions & Answers
Wood-Mizer MES403 Extraction System
