Description

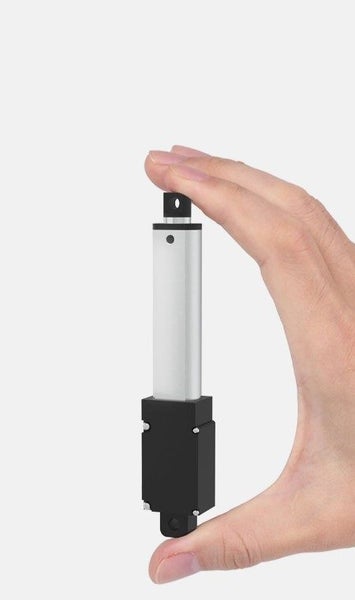

This is a Micro Electric Linear Actuator with 50 mm stroke (travel length).
It is also known as mini linear actuator or electric linear actuator. This actuator should always be used with an in-line fuse to protect the DC motor from over current.
This actuator cannot be operated with other actuators synchronously. For synchronous system, the actuator needs to have a built-in position feedback sensor and multiple actuators connect to a dedicated synchronous controller.

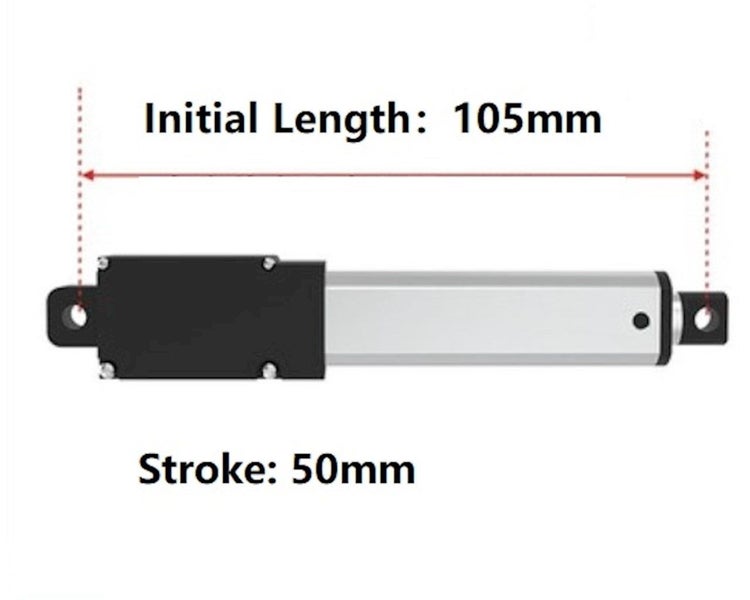

Specs: Also Known As: Mini Linear Actuator, Electric Linear Actuator, Miniature Linear Actuator Initial Length: 105 mm Stroke: 50 mm Supply Voltage (Voltage): 12 V Speed: 8 mm/s Load Capacity (Rated Load): 6 kg No Load Current: 200 mA Operating Temperature: -26 to +85 C Limit Switches: Built-in both ends Linear Actuator Material: 304 Stainless Steel + Aluminium Alloy + Plastic
Other length linear actuator available:
Micro Linear Actuator 10mm Stroke 12V 8mm/s 6kg Micro Linear Actuator 30mm Stroke 12V 8mm/s 6kg Micro Linear Actuator 75mm Stroke 12V 8mm/s 6kg Micro Linear Actuator 100mm Stroke 12V 8mm/s 6kg Micro Linear Actuator 150mm Stroke 12V 8mm/s 6kg
