Description
Experience seamless solar energy with our premium off-grid system, combining top-tier solar panels and a high-grade hybrid solar inverter.

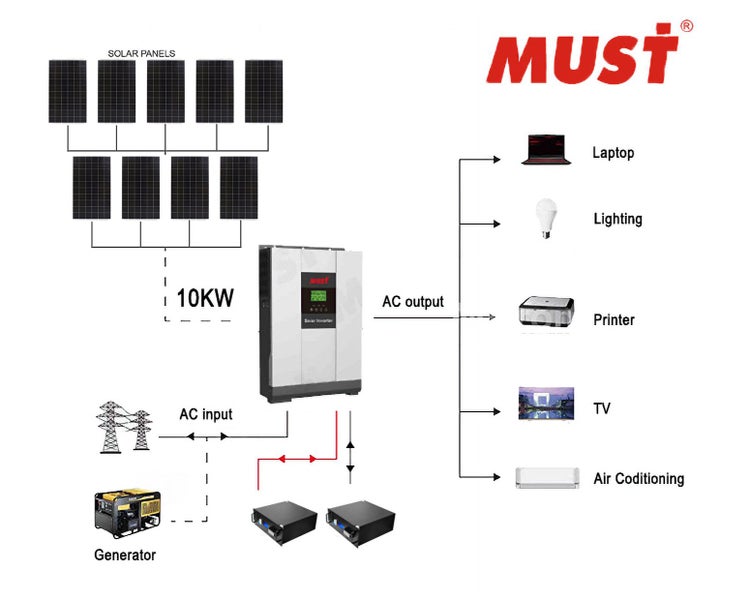

Package includes: 9 x LONGi Hi-MO LR5-54HTB Mono 440W Solar Panel Black Frame Half-Cell (25 Years Linear Power Output Warranty, dimensions: 1722x1134x30mm) 2 x 5000W MUSTPOWER Hybrid Off-Grid Inverter PV18-5048 VHM (2 years warranty) 2 x 48V 51.2V 100Ah 110Ah LiFePO4 Battery with 6000 cycle times (15-year warranty, 30-year run life) 2 x 10m Twin 4mm PV Extension Cable with MC4 Connectors 1 x 2-in-1 MC4 Connectors 1 x PV Safety System with Fuse Box 9 x Commercial Mounting Kits with Adjustable Angle Version

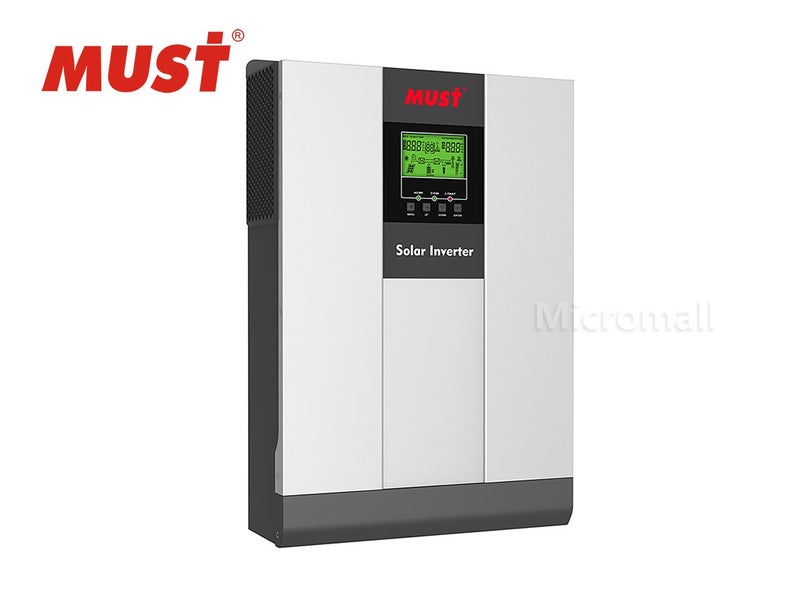

Specifications for the PV18-5048 VHM Inverter: Nominal Battery System Voltage: 48VDC Inverter Output: Rated Power: 5000W Surge Power: 10000W Waveform: Pure sine wave AC Voltage Regulation (Batt.Mode): ±5% (220VAC - 240VAC) Inverter Efficiency (Peak): 93% Transfer Time: 10ms (For Personal Computers), 20ms (For Home Appliances) AC Input: Voltage: 230VAC Selectable Voltage Range: 170280VAC (For Personal Computers), 90280VAC (For Home Appliances), 184 - 253VAC (VDE4105) Frequency Range: 50Hz/60Hz (Auto-sensing) Battery: Normal Voltage: 48VDC Floating Charge Voltage: 54VDC Overcharge Protection: 60VDC Solar Charger & AC Charger: Maximum PV Array Open Circuit Voltage: 145VDC PV Array MPPT Voltage: 64~130VDC PV Input Power: 2880W/3840W Maximum Solar Charge Current: 60/80A Maximum Efficiency: 98% Maximum AC Charge Current: 60A Maximum Charge Current: 120/140A Physical Specifications: Dimensions (WHD)(mm): 297.5x468x125 Net Weight(kg): 13.3
SAA NZ Certificated Inverter Daily Output 23KWH with a 6-hour charging time based on average sunlight hours in New Zealand's winter & summer seasons.
Details
Shipping & pick-up options
| Destination & description | Price | |
|---|---|---|
| Auckland (Excl Waiheke Island & Others) | $130.00 | |
| Outer Auckland | $220.00 | |
| North Island Mainfreight Depot Pickup | $280.00 | |
| North Island NON RURAL - Door to door delivery | $330.00 | |
| North Island RURAL - Door to door delivery | $390.00 | |
| South Island Mainfreight Depot Pickup | $390.00 | |
| South Island NON RURAL - Door to door delivery | $440.00 | |
| Pick-up available from Auckland City, Auckland | Free | |
Payment Options
Cash, NZ Bank Deposit
Questions & Answers (1)
Welcome to Micromall. For our store address, contact number, and business hours, please visit: trademe.co.nz/stores/micromallnz/contact. Thank you. Seller comment Wednesday, 29 October 2025
2025 Mustpower 23KWH 48V 10kW Off-Grid Solar Kit with LiFePO4 Battery
