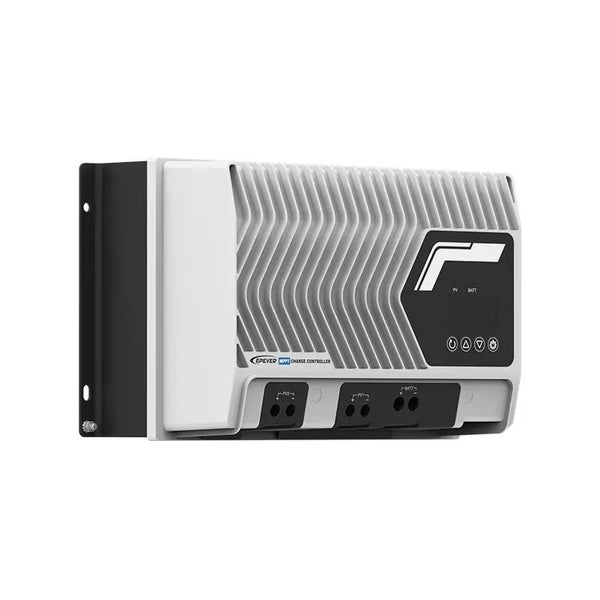

The ET-NC G3 series is a new generation of high-current MPPT charge controller. It offers superior MPPT tracking and conversion efficiency. The series is compatible with various lithium battery types and supports three-stage charging management to extend battery lifespan. Its exceptional low-power design significantly reduces static consumption, prolonging system standby time. Comprehensive electronic protection and flexible communication options (WiFi, Bluetooth, 4G, etc.) further enhance system reliability and monitoring capabilities. It is widely used in RVs, boats, industrial monitoring, and small to medium-sized solar power systems.

Features Supports 12V/24V/36V/48V systems; Charging current: 50A All metal die-casting shell Supports two PV inputs Max. MPPT tracking efficiency: 99.9%; Max. Conversion efficiency: 98.5% Compatible with AGM, Gel, Flooded, LiFePO4 batteries, etc. Constant voltage output function: Enables direct load supply with sufficient PV energy Communication interface with electrical isolation Real-time data recording, event logging, and power statistics function EMC compliant (CLASS B)

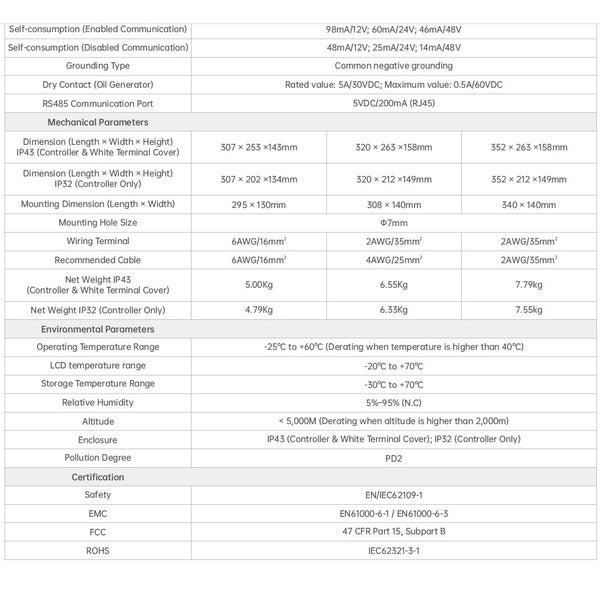

Model: ET5420NC G3 Battery Rated Voltage: 12/24/48VDC or Auto Controller Operating Voltage Range: 8–62V Battery Type: AGM (Default) / Gel / Flooded / User Lithium Battery Type: LiFePO4 / Li (NiCoMn)O2 / User Rated Charging/Discharging Current: 50A Rated Charging Power: 650W/12V; 1,300W/24V; 2,600W/48V Maximum Charging Power: 650W/12V; 1,300W/24V; 2,600W/48V PV Maximum Open-circuit Voltage: 200V (@ lowest temperature); 180V (@ 25?) Tracking Efficiency: = 99.5% Maximum Conversion Efficiency: 98.3% Dimension (Length × Width × Height) Controller & White Terminal Cover: 307 × 253 ×143mm Controller Only: 307 × 202 ×134mm Net Weight: 4.79kg
